QVA - Model M020 -Aerosol Generator

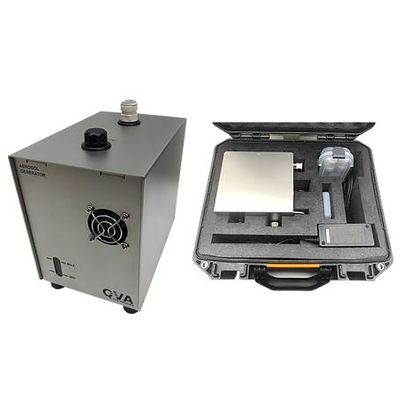

The M020 aerosol generator is ideal for testing small systems and is very compact allowing for easy travel and shipping. The unit comes in its own carrying case and the power supply can be easily adapted for international use.
Most popular related searches
-
100X reduction in oil output when compared to traditional Laskin nozzle generators
-
100-7,500 cfm testing capability when used with particle counters
-
316 Stainless steel enclosure
-
Compact and light weight unit(3.2kg) with compressor built in.
-
Positive pressure output for positive pressure injection
-
Low volume PAO fill (~60 ml) and consumption
- For use with oil based liquid aerosol agents such as PAO
- or DEHS
- Poly-dispersed aerosol output
- 3/8” Push to connect generator outlet connection (1/4
- bspp port allows for alternate fitting configurations)
- Aerosol output range capabilities 100-7,500 CFM (0.02
- µg/l)*
- 316 Stainless steel enclosure
- Dimensions & Weight
- 124 mm X 216 mm X 191 mm (5.0”W x 9.0”D x 8.0”H),
- 3.2 kg (7.0 lbs)
- Self contained (internal compressor)
- Power supply (Included)
- 100-240VAC, 50/60 Hz, 1A MAX.
- *Six million particles (≥0.3μm) per cubic foot of air (2.1x108
- per
- cubic meter) is approximately equivalent to 0.02 μg/l of PAO.
