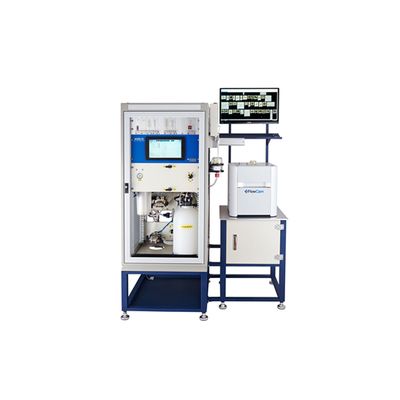

SAMBO Scientific - Model FlowCAM+AOSS -Algae Online Sampling System

• Real-time algae moniting is possible from automatic sampling to measurement and data transmission
• Periodic filter backwashing, immediate cleaning of measuring cell and sampling line after measurement
• The central management center can monitor the results of the algae measurement
• Measure cell counts by algae (counts/ml) and requested parameters (area, etc.)
• Provide, store and transfer real-time images of algae in raw water
• Library provided for determining algae species
• In addition to the library initially provided, the database can be expanded through equipment operation
• Include images measured with FlowCAM

Sample measurement (FlowCAM)

• Measurement items: algae species, cell counts, morphological parameters for algae analysis
• Algae classification method: classification using 40+ morphological parameters
• Measurement range: 2 to 1,000um
• Lenses : 20X, 10X, 4X, 2X
• Camera: High resolution (1920 × 1200) CMOS Color
• Trigger mode (selective measurement for algae only)

Auto-sampler (AOSS24, Algae On-line Sampling System)

• Functions of automatic sampling, filtering, and cleaning in conjunction with FlowCAM
• Apply the primary screen (500um) to remove foreign substances due to high turbidity
• Cleaning and backwashing system to prevent contamination of the system and sample lines
• Automatic cleaning system for measurement cell
• Dimension: (W) 1,200 mm (D) 750 mm (H) 1,500mm
