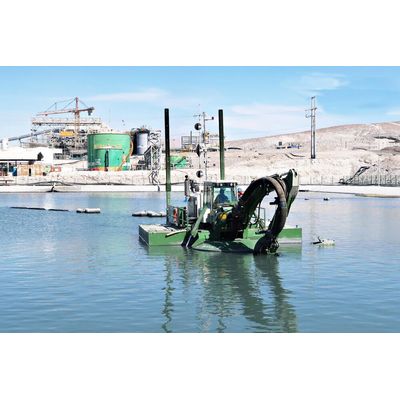

Model AMD 5000 -Amphibious Multipurpose Dredger

One versatile machine for all shallow water applications. Watermaster amphibious multipurpose machine excels alone in the tasks that are conventionally handled with multiple separate machines. With its versatile selection of quickly changeable attachments, the Watermaster can do all shallow water work from dry ground up to the depth of 20 feet.

01 Transport

Transport the dredger on a standard trailer.

Watermaster is transported as a complete unit, so there are no set-up times when arriving at the site.

02 Launch

Launch the dredger without set-up times, cranes and tugboats.

Watermaster is amphibious and can walk independently in and out of water without crane assistance.

03 Travel to worksite

Operate the dredger without winches, wire cables and assisting vessels.

Watermaster has its own propulsion system so it can get to the site independently without the help of tugboats.

04 Operate

Watermaster has four stabilizers enabling steady and accurate anchoring and operation.

Watermaster Hull with Four Hydraulic Stabilizers and Four Side Pontoons
Cat C7.1 Tier 4 Diesel Engine for Hydraulics and Propulsion System
Excavator Arm with Central Pressure Greasing System
Watermaster Cutter Pump
3/4 Yard Excavator Bucket
Climate Controlled Cabin
Two Weeks On-Site Training

Engine

Caterpillar C7.1, turbo charged, Tier 4, 6-cylinder diesel engine 275 bhp tier 4 compliant

Air-water radiator cooled
Flywheel power at 2100 rpm, 275 bph
Two fuel tanks inside the hull with a total capacity of 316 gallons
Electric system 24 V
Batteries 2 x 170 Ah
Electric refueling pump

Hydraulics

axial piston pump (1) for dredging and propeller

operating pressure 5000 psi

axial piston pump (1) for excavator and stabilizers

operating pressure 3300 psi

Excavator

swingrange 180°
breakout force bucket cylinder 18,650 lbf
digging force from arm cylinder 10,560 lbf
lifting capacity at max. reach 5,500 lbf

Hull

one piece, 7 watertight compartments
protective skid bars on bottom
corrosion resistant paint inside and out
mast, signal lights for dredging and navigation

Cabin

modern FOPS certified cabin with excellent visibility
additional seat for instructor
10 work lights

Anchoring

two front hydraulic outriggers 16.3 ft depth,
two hydraulic rear spuds 21.75 ft depth
no vessels, cables or winches needed to work or anchor

Mobility

self loading and unloading on/off lowboy trailer
moves independently in and out of water
amphibious in all work functions
transport length with boom 52 ft, 10.75 ft, height 10.23 ft

Certified quality

For quality assurance each Watermaster is registered by the US Coast Guard National Vessel Documentation Center (NVDC).

Watermaster’s reliability is demonstrated through over 3 decades of engineering, testing and continuous improvement in design and manufacturing.

Transport dimensions and weight

Transport length without boom 34’6”
Transport length with boom 17,00 m
Transport width: 3,30 m
Transport height: 3,15 m
Transport weight ca 21.5 tons
