Model EC400 -Analyser

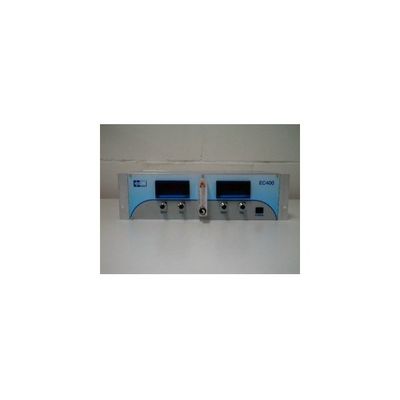

The EC400 is an analyser in rack 19″ 3U for 1-2 gases. It can be configured for 1-2 cells NDIR, 1-2 electrochemical cells or 1 cell NDIR and 1 electrochemical cell. The typical configuration for biogas / biomethane is for methane 100% and oxygen 25%, carbon dioxide 100% and H2S 2000ppm or a whatever combination between them. The analyser has two 4-20mA outputs and two contacts for threshold alarms for each channel of measure, freely configurable by the end user. The EC400 can be suypplied as a bench unit or as an insert in our systems of biogas analysis of the series EC020, ready for the installation, complete with one or more EC400, refrigerator, coalescence filter with peristaltic pump to remove the condensate, condensate detector, gas sensor to detect eventual internal gas leaks, pressure switch for low flow.
