Arcjet - Model 101/700 -Arc Spray Coating System
This system is designed for onsite Zinc or Aluminium spray work, gun is light weight most suited for hand held.
Most popular related searches
System Comprises of :-
- Arcjet 101 gun. (Design patented)
- Power source 700 amp with built in control panel [420/3P/50-60 Hz].
- Wire drive unit with wire spool stand.
- Wire drum dispenser [optional] – 02 nos.

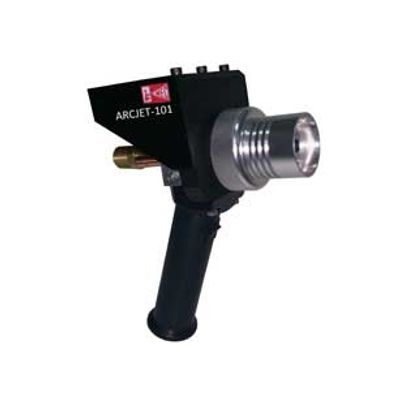

- Arcjet 101 is a light weight (1.30 kg) gun with no moving parts.
- Ideally suited for manual operation.
- Designed to spray wires of diameter 2.0, 2.3, 2.5 & 3.17mm
- CE compliant.
| MATERIAL | REFERENCE | WIRE DIAMETER | MAXIMUM THROUGHPUT kg/hr | MAXIMUM COVERAGE m2/kg/100 micron |
| Zinc | MEC 540 | 2.0mm/2.3mm/2.5mm/3.17mm | 72@700 amp | 0.82 |
| Aluminium | MEC 699 | 2.0mm/2.3mm/2.5mm/3.17mm | 20@700 amp | 2.88 |
| Zn/Al – 85/15 | MEC 545 | 2.0mm/2.3mm/2.5mm/3.17mm | 62@700 amp | 1 |
| Copper | MEC 599 | 2.0mm | 35@700 amp | 0.91 |
| Nickel Aluminium | MEC 884/885 | 2.0mm | 38@700 amp | 1.09 |
| Steels | MEC 710/720/730 | 2.0mm | 31@700 amp | 1.02 |
