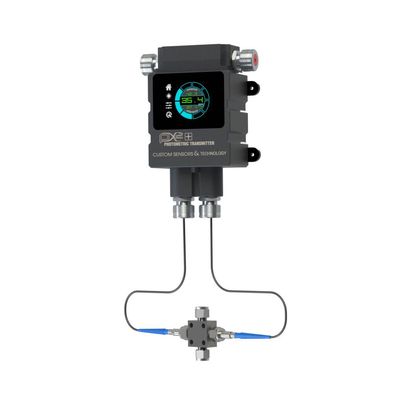

CST - Model BTEX -Aromatic Hydrocarbons Analyzer
Aromatic hydrocarbons benzene, toluene, ethylbenzene, and xylene are often referred to as BTEX and are used in a multitude of products in the petrochemical, agrochemical, and pharmaceutical industries. These aromatic hydrocarbons are dangerous compounds that can cause adverse health effects and even cancer. Monitoring methods need to be rapid and reliable. CST’s BTEX Analyzer continuously and accurately measures the presence of aromatics in hydrocarbon solvents using UV spectroscopy.
Most popular related searches
aromatic hydrocarbons analyzer
BTEX
flow cell
interface detection
hydrocarbons analyzer
BTEX analyzer
aromatic analyzer
flash detector
wastewater monitoring
xenon light source
- Measurement Principle: UV Absorbance
- Range/Repeatability: BTEX in Liquid
- 0-10ppm
- 0-100pm
- 0-1%
- Accuracy: ±1% full scale
- Repeatability: ±0.5% full scale
- Light Source: Xenon Flash Lamp
- Detector: Silicon Photodiode
- Display: 3.2″ Capacitive Touch Screen Display
- Alarms: Contact Closure (60 VDC, 0.75 A max.)
- Analog Output: 4-20 mA, isolated
- Analog Loop Resistance: 500 ohms @ 24 VDC
- Digital Output: USB-B, RS-485 (Modbus)
- Power Consumption: 8.5 watts (max.)
- Power Requirements: 24 VDC nominal (12-48 VDC)
- Enclosure Material: NEMA4X Anodized Aluminum
- PX2+ Size: 5” H x 5.8” W x 2.8” D
- Temperature: 5-50C
- Weight: 3.5 lbs. (1.6kg)
- Sample Introduction: 3/8″ 316 Stainless Steel Flow Cell
- Process Pressure: 2000 psi max
- Minimum Flow Rate: 100 ml/min
- Hydrocarbon Solvents
- Jet Fuel
- Interface Detection
- Wastewater
