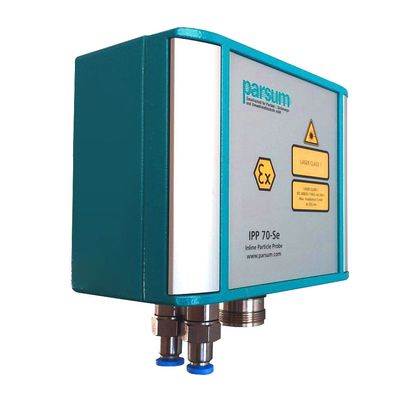

Parsum - Model IPP 70-Se -ATEX Inline Particle-Measuring Probe
The IPP 70-Se is a robust intrinsically safe probe designed for inline particle measurement in ATEX zones, pivotal for chemical, food, and construction material industries. This probe's stainless steel construct with sapphire windows ensures durability, while maintaining optimal cleanliness through compressed-air-driven accessories. Featuring a particle size measurement range from 50 µm to 6000 µm and capable of analyzing particle velocity between 0.01 m/s and 50 m/s, it supports environments with damp or sticky particles, utilizing dispersers for irregular particle movements. Its flexible design, with a measurement rate up to 20,000 particles per second, integrates seamlessly with other probe models and permits interfacing through ASCII files or other formats. Alongside process compatibility for diverse applications like granulation and spray drying, it includes a laser class 1 light source, securing system protection at IP65 standards for different process conditions.
The IPP 70-Se is the intrinsically safe version of the standard model IPP 70-S for use in processes with ATEX requirements.
When used in conjunction with a measuring PC, it allows for the determination of particle size distribution (e.g., Q0, Q3) as well as the attributes of the distribution (x10, x50, x90, etc.) even directly within processes in ATEX zones 0/20 (gas/dust).
It consists of a robust stainless-steel construction with sapphire windows to protect the optics from wear.
Its dimensions, measuring ranges and accessories make it compatible with all other probe models, so all of the accessories for process adaptation can also be used with the IPP 70-Se in ATEX areas.
Compressed-air-driven accessories, such as dispersers, ensure that the measuring volume and measurement optics are kept permanently free from contamination while also guaranteeing optimal adaptation to process and particle attributes. The probe is therefore also suitable for use in processes with damp and sticky particles. Using a disperser means that measurements can also be taken in processes with irregular particle movement, such as in fluidised beds, or processes with high particle loads, such as high-shear processes.
A complete measuring system consists of the IPP 70-Se with accessories for process adaptation, the barrier box for Ex-zone separation and a measuring PC with measuring program for particle searching and the calculation of all distributions. The measured results can then be made available to a higher-level control system via optional interfaces.
The IPP 70-Se is the standard probe for all processes in ATEX areas in the fields of chemistry, foodstuffs and construction materials, etc., for fluidised beds, granulation, agglomeration, coating, spray drying, sieving, grinding and transport.
- IPP 70-Se inline particle-measuring probe
- Particle size measurement range : 50 µm … 6000 µm
- Particle velocity: measurement range : 0,01 m/s … 50 m/s
- Particle volume concentration : for particles <1 mm, up to approx. 12 vol.%
- for larger particles, up to approx. 30 vol.%
- Measuring rate : up to 20,000 particles/s
- Products : Powder, pellets, granulates, sprays, etc.
- Process temperature/pressure : –20°C to +100°C / <4 bar
- Material, in contact with product : stainless steel (L316), sapphire, epoxy resin
- Probe tube dimensions (L/D) : 280 x 25 mm
- Electronics-housing dimensions (W/H/D) : 120 x 90 x 60 mm
- Electronics-housing temperature : -10…60°C
- Housing protection class : IP65
- Light source : Laser (laser class 1)
- Power consumption : 2W (typ.)
- Interfaces : Particle distributions and attributes as an ASCII file (Excel compatible), optional: 4–20 mA, TCP/IP, OPC
Process interface :
- D24 disperser : For high load / high fine content – particles up to 2000 µm, clearance 3.8 mm
- D12 disperser : As for D24, but also for larger particles >2000 µm, clearance 7.5 mm
- SZ11, SZ20 cleaning cells : With low load for cleaning the probe optics without diluting the flow of particles
- Compressed-air unit : Compressed-air supply for the probe when using dispersers or cleaning cells
- VS28 anti-wear guard : Tube sleeve with a reinforced hard-chrome coating with a hardness of 68–72 Rockwell
