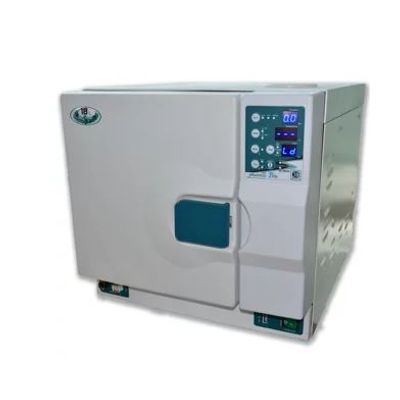

Model phoenix Blu LED -Autoclave
The class B autoclave with the best quality / price rate: This special version has been specially developed for certain markets where the basic characteristics are only 3: QUALITY - EASILY - CONVENIENCE. We therefore tried to simplify the autoclave by replacing the LCD screen with 3 LED screens which indicate the fundamental data of the autoclave: TEMPERATURE - PRESSURE - TIME. The QUALITY has remained the same as in the other versions, in fact all the components are unchanged, therefore the same functions and characteristics as the LCD versions. To distinguish ourselves from the competition, which continues to raise prices, we lower them. In fact, this model has allowed us to further reduce the price of our autoclave !!
LED DISPLAY
The multilingual display shows the graph of the cycle in use and provides the operator with instantaneous data on the pressure or temperature inside the chamber or on the function in progress. In addition, the screen shows warning / error messages assisted by an audible alarm.
STAND-BY
With the stand-by function, the sterilization chamber is heated in order to eliminate the heating operation and save about 10-15 minutes on the next sterilization cycle and to prevent the formation of humidity during the cycle night. DRYING
With
the Phoenix Blu autoclave you decide how long the cycles will
last. Just with the preset cycles, for each sterilization cycle you can select the drying time as desired (1-5-10 min.)
14 STERILIZATION CYCLES 3
sterilization cycles at 134 °C or 121 °C, or PRIONE (134 °c) in class B. Using the WRAPPED button it is possible to select the type of cycle if WRAPPED (3 split voids) or NOT WRAPPED (1 empty). With the DRY button it is possible to choose the drying time (1-5-10 min) in order to have up to 12 sterilization cycles.
EACH CYCLE CAN BE
A QUICK CYCLE 3 CYCLES OF TESTHelix Test, Bowie and DickTest and Vacuum Test. Special SELF-CLEANING cycle of the steam generator.
USB PORT & INCORPORATED PRINTER
All our phoenix Blu version or capacity are equipped with the USB PORT. Just insert the key supplied in the appropriate port to save and archive the data for an
indefinite time. sterilization. Also saving large quantities of paper and with an eye to the environment.
phoenix Blu PRINTER version is equipped with USB port and integrated printer for automatic printing of sterilization data on thermal paper.
It is possible to archive the various receipts to prove the sterilization and the result.
ULTRA RAPID STEAM GENERATOR The
new Phoenix Blu are equipped with a latest generation external steam generator, an ULTRA RAPID generator. This feature
has the benefit of reducing the filling times of the sterilization chamber, and therefore of the entire cycle, but above all it ensures that the water is transformed into steam in a very short time, and thus prevents limescale from settling inside.Moreover, with the cleaning
cycle of the generator it is possible to remove any impurities and thus increase life useful of this fundamental component.
QUALITY AND SPEED
The main characteristics required by each user are quality and speed. The new Phoenix Blu has been designed trying to fully satisfy these two characteristics. In fact, in our autoclaves they can only be found high quality components. But not only that, the whole autoclave and the positioning of each single component have been carefully studied to try to reduce ordinary and extraordinary maintenance times to a minimum. DOUBLE
HEAD VACUUM PUMP The vacuum pump
represents the most important element of the whole autoclave, as it
regulates the function of the vacuum, a fundamental phase for a class B sterilization cycle. On our autoclaves we only mount high-efficiency double-headed pumps (3 Fractionated Vacuum) .
INDEPENDENT AND INSPECTIONABLE TANKS
The two independent tanks for distilled water and used water can be
easily inspected through the upper lid, which is anchored by means of simple screws. In fact, it is enough to unscrew them to access the tanks so as
to carry out normal maintenance operations very quickly. The autoclave is also equipped with a water quality control system which checks the conductivity of the distilled water and displays an error message
if the
value is greater than 15 μs. / WATER Autoclave is equipped with 2 condensers: The first serves to recondense the steam into the water, the second has the function of separating the water from the air. This function is very important, because it prevents the steam and / or further (corrosive)
liquids do
not go inside the pipes and prevent the breakage of components such as the vacuum pump. WHO RAPID All our autoclaves are equipped with the quick connection system for loading and unloading water, positioned on the front of the sterilizer making unloading operations quick and easy. On request it is possible to have the rear exhaust, already present as standard on some models,
