Beeline - Model 300 sx -Automated Liquid Handler

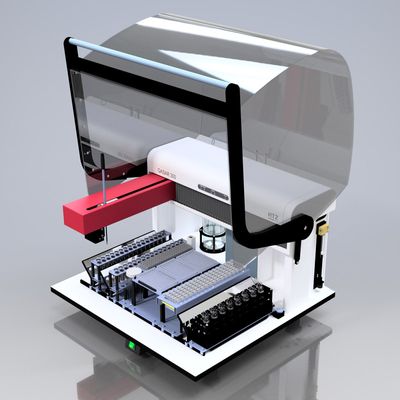

The Beeline sx is an automated liquid handler designed primarily for pipetting samples with maximum precision, accuracy and security. It comprises an XYZ mechanism to move one or more independently driven pipetting probes around the deck of the instrument to perform tasks such as sample pipetting, sample dilution and reagent addition. It is an inherently flexible system designed to perform sample specific pipetting from any source tube or container to any target vessel, all under the control of easy to use software.
- Excellent pipetting accuracy and precision throughout a wide volume range (standard range 1µl upwards)
- Applications Software to cater for just about any pipetting task
- Accepts any rack or container (provided that it holds containers securely and reproducibly)
- Automatically reads both sample and target barcodes for totally secure processing
- Comprehensive interfacing options for both import and export of sample associated data
- Comprehensive recording of processing information
- Robust and reliable technology used throughout
The Beeline sx range of automated liquid handlers has been developed over many years and has evolved to incorporate the latest developments in robotics and software technologies to maximise reliability and performance. The Beeline sx range accepts a number of options making it suitable for clinical, industrial and pharmaceutical procedures. The Deck can be populated with a variety of racks and accessories depending on the requirements of the specific application being automated. Essentially, the Deck is “open” and will accommodate just about any item that can be fitted within the confines of its working envelope.

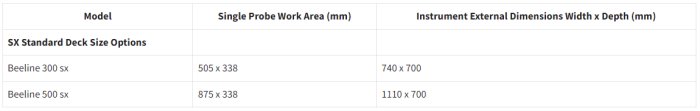

The Beeline sx range includes two standard models with different deck sizes, the Beeline 300 sx and the Beeline 500 sx. Other sizes are available for customised systems. Other than the physical deck capacity, each instrument offers the same range of accessories and options.
Other Beeline sx features include:
- Fully customisable and readily optimised for each application
- 1 Probe or 2 Probe configuration options
- Capacitive, pressure or conductive liquid level detection
- High-resolution, high-speed syringe drives
- Fixed Needle Probes (e.g. fluid filled) or Disposable Tip (air displacement)
- Variety of Applications Software to cater for just about any pipetting task
When it comes to choosing an automated liquid handling system, the starting point it is always important to consider all aspects of the pipetting task that you want to perform. Significant considerations which will affect your choice of automation include the following:
- Processing throughput required e.g. number of samples per hour
- Are there kinetic considerations? e.g. does a critical reaction start as soon as the sample has been dispensed?
- What is the maximum batch size to be processed at one time?
- Is sample barcode reading a requirement?
- Is target barcode reading a requirement? e.g. are the target microplates, microscope slides, tubes barcoded?
- What is the sensitivity of the test and the importance of preventing sample carryover?
- Are the requirements for automation likely to increase significantly in the near future?
- Does everything fit on the Deck ? (Samples, Plates, Tips, Incubators etc)
- What is your budget for both instrument purchase and running costs?
All of the above questions should be considered carefully along with many more. Please Contact us or your local HTZ distributor to discuss your requirements in detail and we can advise you which model best suits your workflow.
