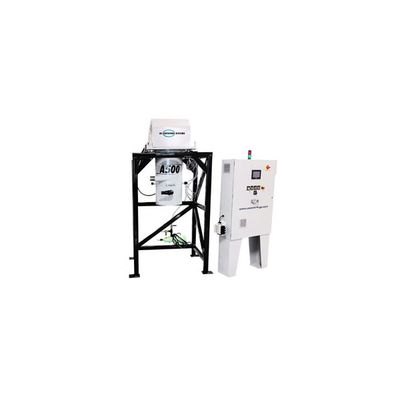

Model A500 -Automatic Centrifuge
A500 Automatic Centrifuges are designed with innovative, cost-effective features and integrated processing advantages that are not found on competitive units. A maximized liquid flow path through the centrifuge bowl increases liquid retention time, and the patented Centri-Lock™ plow-clutch and a three-bladed plow assembly with an efficiency ring minimizes liquid turbulence. Increased retention time combined with minimized liquid turbulence creates superior separating efficiency. After the solids material has been separated, a strong gear-driven plowing mechanism will remove even the toughest cake.
Mechanically, A500 Automatic Centrifuges are a hanging design — smooth and very stable. The machine is simple and inexpensive to maintain with an estimated bearing life of 3 to 5 years, and an estimated labor life of 10 years, depending on working conditions. Removal of the rotating assembly can be completed in a matter of minutes. The bowl enclosure can be easily unbolted and removed.
- Maximum flow rate: 20-gpm
- Solids holding capacity: Up to 2 gallons
- Maximum sludge discharge: Up to 8 gallons per hour
- Maximum g-force: 2,000 x gravity
- Liquid inlet fitting: 1″ NPT
- Required inlet pressure: 10-psi @ 40 gpm
- Maximum temperature: 160° F
- Standard pH range: 6 to 9 pH
- Liquid discharge fitting: 3″ NPT
- Liquid discharge pressure: Gravity return
- Noise level: 72 dB (A)
A500 Automatic Centrifuges are economically priced, fully automatic self-cleaning centrifuge systems for liquid-liquid and liquid-solid centrifuge separation, solids dewatering, and centrifuge liquid filtration and fluid clarification. The machine is available in standard carbon steel or optional stainless steel construction.
