EKOflow - Model COR 1 -Automatic Coarse Chain Screen
FromTeko Ltd.
Application: For mechanical pretreatment of wastewater/rainfall water, removes all particles larger than the wanted clear width between screen`s bars immersed into the water, installation in channels.
Most popular related searches
coarse screen
coarse screening
wastewater pretreatment
waste containment
waste container
bar screen
mechanical wastewater pretreatment
spiral press
water regulations

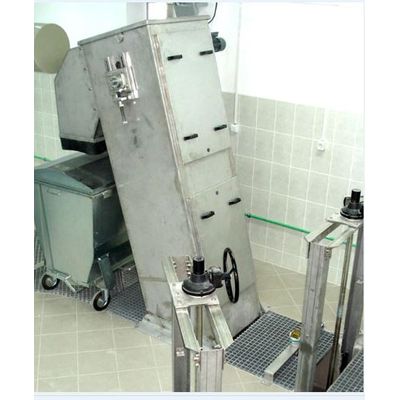

- Device is installed into channel and heavily reinforced at the bottom and at the channel sides. Bottom part of device, immersed into the channel, consists of grid bars with specific clear width, and several driven sprockets. Rubber routers are installed on the front side of immersed part in order to direct water flow.
- On the upper part of device, on the drive axis, there are driving sprockets equiped with electric drive with reductor. On the rear part of the device there is an output outlet through which the collected material comes out and falls into the waste container or in the spiral transporter with press machine
- Sprockets are using rotation driving the chain, on which one or more combs are articulary placed. On the upper trajectory, comb together with chains travels along the screen and lifts accumulated solid material to comb cleaner placed at the top of device. Scraper pulls down the collected material from the comb, and lets it out through the outlet. After comb cycle is finished, comb is stopped in its initial position till the next automatic start.
- QMAX Maximum channel flow 3000 L/s
- WMAX Maximum channel width 3,0 m
- HMAX Maximum channel height 10,0 m
- S Light opening between screen bars 8 - 150 mm
