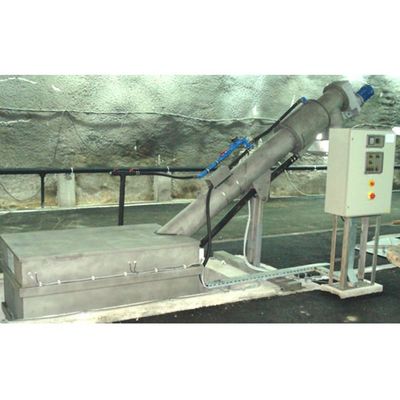

EKOflow - Model COR 3 -Automatic Coarse Rotation Screen
FromTeko Ltd.
Application: For mechanical pretreatment of wastewater/rainfall water, removes all particles larger than the chosen plates on the drum. The device is multifunctional: its collects, transported and in the drain unit, it drains water from the collected waste.
Most popular related searches
coarse screen
coarse screening
wastewater pretreatment
bulk waste
drain water
solid waste
waste collection
sludge draining
mechanical wastewater pretreatment
water drain
- On the internal side of the static drum waste water flow accumulates bulk waste which is stuck to drum`s plates. Rotation comb lifts the accumulated material up and throws it into the basin, and the material falla on the opened lower end of the spiral. Next the waste is using spiral rotation transported to the draining zone, where it is pressed and drained and then on the exit it is ejected through an outlet into the container for solid waste.
- Clean water is brought on the pressing zone, cleaning the sludges which remained after the pressing process. Cleaned sludge is drained back to the channel using pipes.
- QMAX Maximum channel flow 2400 L/s
- DMAX Maximum drum diameter 2,8 m/s WMAX
- Maximum channel width 3,0 m
- HMAX Maximum channel height 3,0 m
- S Light opening between drum bars 6 - 10 mm
