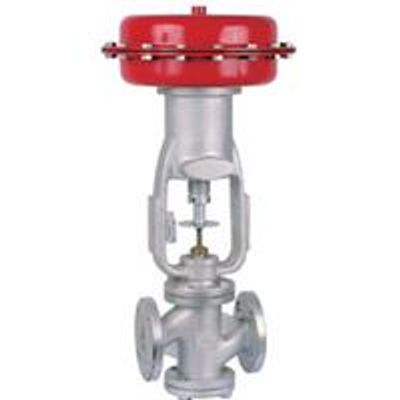

Model VT, TAT, SW -Automatic Diaphragm Actuated Control Valves
TYPE: Diaphragm type two port. Body Material: SCS14, SCS13, FCD-45, WCB. Diaphragm Material: Neoprene. Trim Material: 1.4021. Admissible Temperature Range: -10ºC-+200ºC. Nominal Sizes: DN15-DN125. Plug Travel: 20mm for all size. Maximal Leakage: 0.01%KV. SupplyAir pressure: Max.3.0Kgf/cm2 (100psi). Signal input: 4-20mA DC.
Most popular related searches
control valve
actuated diaphragm valve
automatic control valve
actuated valve
globe valve
diaphragm valve
valve actuator
- Size: 1/2`` ~ 5`` (DN25 ~ DN125)
- Pressure Rating: JIS 10K, PN16
- Material: SCS14, SCS13, FCD-45, WCB
- End Connection: Flanged
I. Service:
- For steam, air, water, oil and other fluids
- Air supply: 1.4 ~ 2.8kg/cm2
- Operating air pressure: 0.2-1.0, 0.4-2.0 kg/cm2
- Connection Rating: JIS 10K
