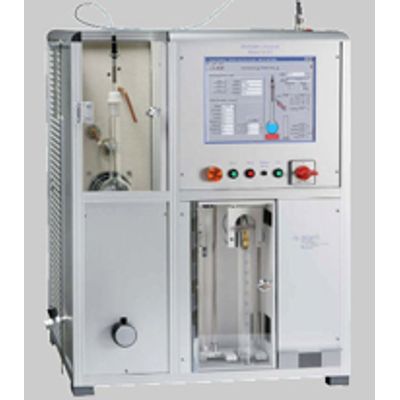

HAAGE - Model DA 30.25 -Automatic Distillation Machine
The HAAGE DA 30.25 is a distillation apparatus equipped with an integrated microprocessor controller, facilitating precise management of distillation parameters specific to distinct boiling groups. Designed to operate autonomously, it can efficiently record all pertinent distillation data onto an external PC or the connected unit. It is ideal for the distillation of products, solvents, and crude oils, adhering to industry standards. The option for customization allows for tailored solutions to meet unique distillation requirements, making it versatile for various industrial applications. Furthermore, HAAGE offers a comprehensive spare parts service, not limited to current models but also extending to older models like the HAAGE Distillation Device ASTM D86. This ensures continuity and reliability in operation. Technical specifications and configurations are subject to modifications, reflecting the company's commitment to innovation and adaptation to evolving technological needs.
The HAAGE DA 30.25 automatic distillation machine has a microprocessor control. The device is pre-programmed with all the necessary distillation parameters for the individual boiling groups. Several individual devices can be operated autonomously with an external PC or a HAAGE DA 30.25. All relevant distillation data is saved on the external PC or the connected DA 30.25.
For distillation of products, solvents and crude oils in accordance with the standards:
- ASTM D86 Group 0,1,2,3: Distillation of hydrocarbons up to 300°C FBP, all types of gasolines, aviation fuels, turbine fuels and more
- ASTM D86 Group 4: Distillation of diesel fuels, gas oil, heating oils, heavy oil products, etc. up to 420°C FBP
- ASTM D1078 Group Solvents (Visual - manual dry point determination)
- ASTM D1078 Group Solvents (Automatic Drying Point Determination)
- ASTM D1078 Group 7 and 8 (modified dry point determination)
- ASTM D285 (modified), Group 6: Distillation of crude oil
- calibration : temperature and volume automatically
- dry point : Automatic determination for solvents, PT100, 200 ml flask, accessories
- sample volume : 100 ml, 200 ml
- accuracy : +/- 0.1 ml volume, +/- 0.01°C temperature
- boiling range : 0 – 420°C
- supply voltage : ~235V AC, 50~60Hz, ±10%, 110V optional
- operating voltage : 220 V DC
- power supply : approx. 3.6 kW
- Dimensions : W: 515 mm, D: 500 mm, H: 670 mm
- Weight : approx. 86.0 kg
- Distillation flasks 125 ml, 200 ml
- ceramic plates Ø 32 mm, 38 mm, 50 mm
- follow-up control with stepper motor
- Cooling with mechanical cooling machine
- Resistance thermometer Pt 100 with cable and plug
- graduated measuring cylinder with replaceable stainless steel base
- condensation pipe wiper
