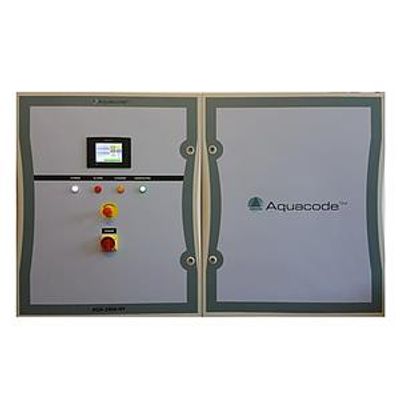

Aquacode - Model AQA-600-NT -Automatic Generator

Cell current vary after unit calibration. Work current must be decrease in case of hot input water ( > 25°C) or hot installation site ( > 30°C) what can decrease output FAC. To save output FAC in hot environment request special designed unit.

Most popular related searches

ORP/redox

anolyte

catholyte

Automatic generator with the following technical characteristics:

Cell current DC: 30 A (*)
Electrical supply: 230 Vac 50-60 Hz
Electrical power consumption: 300 W
Energy to FAC: 7,0 Wh/g
Salt (NaCl) consumption: 2,00 g/L
Salt to FAC: 3,0 g NaCl / g FAC
Input water pressure: 2,2 bar
Oxydant mixture (Anolyte) production capacity: 50 L/h
ORP (Redox): 850-900 mV
pH: 7,0
FAC concentration: 500 ppm
FAC production: 25 g/h
Side product NaOH (Catholyte): 0,10 % – pH 12

Aquacode - Model AQA-600-NT -Automatic Generator

Technical Characteristics
