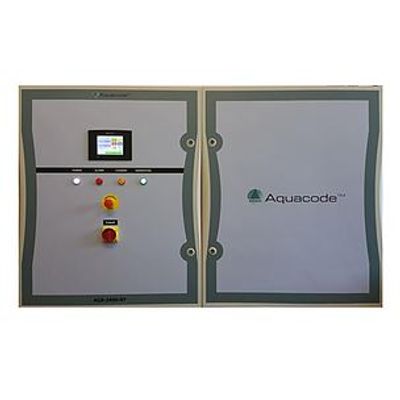

Matseco - Model AQA-3600-NT -Automatic Generator
FromMatseco AB
Cell current vary after unit calibration. Work current must be decrease in case of hot input water ( > 25°C) or hot installation site ( > 30°C) what can decrease output FAC. To save output FAC in hot environment request special designed unit.
Most popular related searches
Automatic generator with the following technical characteristics:
- Cell current DC: 165 A (*)
- Electrical supply: 230 Vac 50-60 Hz
- Electrical power consumption: 1,850 W
- Energy to FAC: 7,0 Wh/g
- Salt (NaCl) consumption: 2,00 g/L
- Salt to FAC: 3,0 g NaCl / g FAC
- Input water pressure: 2,2 bar
- Oxydant mixture (Anolyte) production capacity: 305 L/h
- ORP (Redox): 850-900 mV
- pH: 7,0
- FAC concentration: 500 ppm
- FAC production: 152,5 g/h
- Side product NaOH (Catholyte): 0,10 % – pH 12
