Automatic Pre-Wash Zone

SHARE

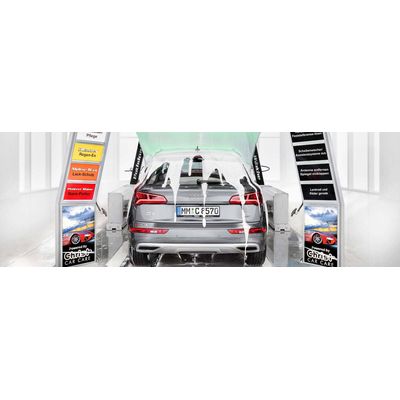

Foam spray device, aluminum premium arch, LED illumination, including program indication. Eye-catching entrance portal made from powder-coated aluminum with vehicle and height identification system. Front side covered with translucent, labeled plastic plates. Illuminated system: 1 Lamp compartment in lateral beam, 1 lamp compartment in left and right side beam, up to 6 additional illuminated LED-program indications in left side beam. A program ticker can be purchased optionally.

Most popular related searches
high-pressure jetting system
high-pressure washing
centrifugal pumping
centrifugal pump
washing system
high-pressure washing system
piston pump
pressure washing
exhaust pipe
particle sizing

Alternative arch versions:

  • Without program indication (left side piece also with drive-in pointers)
  • Without foam fan spray jets and foam reactor /as pre-spray arch with flat spray jets)
Foam flat spray jets from Christ
For special visual optics on the foam arch. The foam carpet is applied evenly and well targeted. Cost-efficient: Reduced chemical and water consumption.
Program ticker
For displaying advertising and promotions. With PC software for free text programming.
Pre-spray device, aluminum premium arch, not illuminated
Frontside covered with labelled plastic plate coverings. No lighting system. Alternative arch model: With foam flat spray jets and foam reactor (instead of flat spray jets)
Rim spray device free-standing.
Rim cleaner is sprayed onto the rims in order to losen the dirt. The device is light barrier controlled.
Chemcial spray device front/rear.
This special device is irreplaceable in express wash tunnel concepts. The spray device consists of two spray pipes  and is delivered with 2 dosing pumps (for various pre-cleaning chemicals). The first spray pipe sprays against the lower front area (insect area) and the second spray pipe against the lower rear area (around exhaust pipe grime).

JETSTREAM-EXPRESS

An effective and powerful automatic high-pressure wash is strongly recommended for express wash concepts in order to prepare the vehicle for the subsequent brush wash. JETSTREAM-EXPRESS powerfully sprays the vehicle with its 5 oscillating high-pressure jet devices (Point spray jet). A working pressure of up to 50 bar at approx. 140 ltr/min can be achieved in combination with two piston membrane pumps suited for recycled water (up to 250 μm particle size). The jet devices spray against the vehicle at the start of the program and pivot in towards the vehicle’s end in the rear area for  a thorough rear wash. The side devices work in alternating operation according to vehicle area. Frame material: Duraprotect

JETSTREAM SEMI-EXPRESS

Ideal for wash tunnels with semi-express wash concepts. The arch relieves the pre wash personnel and thus reduces the workload. The vehicle is cleaned by 4 oscillating high-pressure jet units (working pressure approx. 50 bar at approx. 70 ltr./min.) These spray parallel to the vehicle and turn towards the rear of the vehicle once reaching the vehicle’s end. Frame material: Duraprotect.

JETSTREAM-MATRIX Combination

The JETSTREAM-EXPRESS or the JETSTREAM SEMIEXPRESS can be mounted directly on the high-pressure wheel/sill washer MATRIX. This way, a compact highpressure pre-wash combination is created. We are flexible: Upon request, we can also combine piston membrane pumps with 80 bar and adjust the amount of high-pressure jet devices according to the specific project.

Middle-pressure spray device, mounted on Evolution Wash Portal

For full-surface rinsing of softened dirt by middlepressure spray jets. The spray pipe can be mounted to various Evolution Wash Portals (in the picture on the frame of the kinematic roof cylinder). Designed for supply by centrifugal pump up to 16 bar at 100 ltr./min.

Middle-pressure spray device, DURAPROTECT arch.

High-grade middle-pressure arch in DURAPROTECT frame material. The piping with the spray jets is mounted on the rear of the arch. The arch is designed for supply by a centrifugal pump up to 16 bar at 100 ltr./min. (upon request also combineable with piston membrane pumps).

Middle-pressure spray device, aluminum profile arch

Cost-efficient middle-pressure arch designed with powder coated aluminium frame profile. The piping with the spray jets is mounted on the rear side of the arch on mounting consoles. The arch is  designed for supply by a centrifugal pump up to 16 bar at 100 ltr./min.100 l/min.
