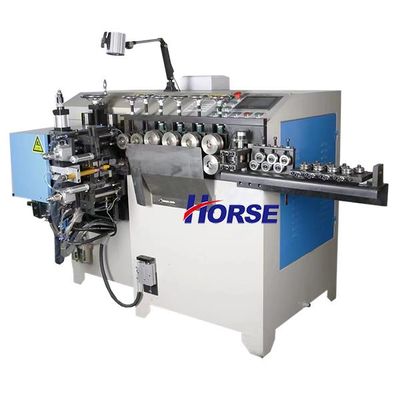

Horse Welding - Model DQ2-6W -Automatic Ring Making and Welding Machine

SHARE

Our Ring making and welding machine is with high automation and high efficiency, ring diameter can be 50mm to 800mm and wire thickness from 2mm to 10mm. Suitable for making and welding galvanized steel wires, carbon steel wires, spring steel wires and stainless steel wires. Especially suitable for making rings for filter cages, including Round rings, oval rings are available. Machine for making special rings can be customized.

Most popular related searches
wedge welding machine
stainless steel wire
power storage
filter cage
stainless steel spring wire
carbonization
power transformer design
screening system
power transformer
  • Model: DQ2-6W
  • Ring Shape: Round, Oval and other shapes can be customized
  • Wire Materia: carbon steel, stainless steel, galvanized wire, spring steel.
  • Wire Diameter: Ø2mm—Ø10mm
  • Ring diameter: 50mm - 800mm
  • Precision:±0.5mm
  • Rated Input Voltage: 380-3P + Null Line (Customized)
  • Transformer Design Power: 100KVA
  • Instant Power Consumption: 25KVA
  • Speed: 20- 40m/min
  • Ring Feeding Method: Automatic Feeding
  • Air presure: 0.6-0.8MPa
  • Air Consumption: 0.3 Cubic Meter /Minute
  • Production capacity: eg. for diameter below Ø155, about 1600pcs/hour

  1. With argon arc welding and related mechanisms, it can weld carbon steel, galvanized wire and stainless steel.
  2. High precision: Encoder and servo motor form a fully closed-loop wire feeding control system to ensure that the diameter error is less than 0.5mm.
  3. Servo electrode drive is adopted, the input power is 2.3KVA, and the wire feeding is stable, fast and accurate.
  4. Electromagnetic oil valves and oil pumps are made in Taiwan, professionally designed and manufactured valve plates, with stable oil pressure and reliable speed.
  5. Powerful storage function, which can store multiple sets of workpiece design parameters, save setting time, facilitate management, and improve production efficiency.
  6. LCD screen, good man-machine interface, the operator can control accurately and quickly.
