Break Machinery Srl
Model One -Automatic Self-Cleaning Filtering System
ONE is suitable for the production of: Recycling granules, polymerisation granules, masterbatch and compound granules, adhesives (Hot Melt), tubular or flat films, thermoforming sheets, pipes and profiles, and cable coating. ONE has been designed to the highest quality standards and has passed the most stringent production tests on various types of equipment, ensuring excellent filtering performance. The careful study of mechanisms, materials and the filtration chamber is the engineering element that has enabled us to achieve our standards.
Most popular related searches
automatic self-cleaning filter
filter cleaning
filter cleaning system
self-cleaning filter
drilling laser
granulator
pipe profiling
plastic filters
waste production
plastic filter media

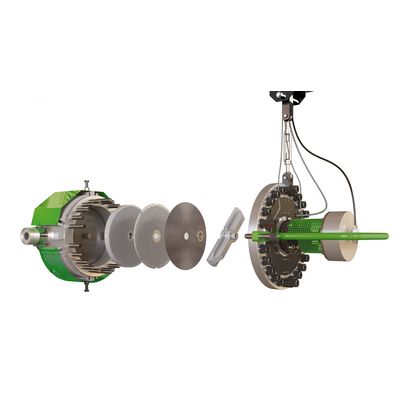

Steel breaker and filter
The scraping mode of operation uses a thick steel breaker followed by a second breaker, the purpose of which is to improve the passage and increase the flow of plastic material, and an interchangeable filter made of punched or laser-drilled sheet steel for filtrations from 60 to 2000 microns.
Touch screen displays
ONE can be customised with touch screen visualisers, agreeing with the customer on the desired graphic layout and reading parameters.
Spacer and Scraper
A spacer allows the scraper blades to work at the correct distance from the filter in order not to damage it.
Centralised
ONE can be centralised with the in-house 4.0 communication network. The machine is prepared for assembly according to customer requirements, with inlet and outlet flanges.
Increased production
Increased production thanks to the automatic cleaning of the filter changer and the absence of traditional interruptions due to operator filter changes.
Reliability
The construction process, from design to the choice of materials and assembly in our factories guarantees the highest quality product in terms of performance and durability.
Simplicity of operation
The simplicity of its construction allows ordinary and extraordinary maintenance directly at the customer’s premises, reducing downtime to a minimum.
Productivity
The continuous filtering system maximises line productivity.
Savings
The efficiency of the cleaning system in continuous mode results in longer utilisation of the laser filter, with a consequent reduction in the purchase of consumables.
Efficiency
The ONE automatic continuous flow filter optimises the filtration of impurities without compromising line productivity by reducing production waste.
The extruder pushes the contaminated plastic material into the ONE filter changer.
A punched or laser-drilled steel filter, with the filter capacity chosen by the customer, removes impurities from the plastic material.
The filtered and purified material leaves the ONE filter changer for further processing.
All impurities are collected inside the scraper and automatically discharged through the discharge valve.
