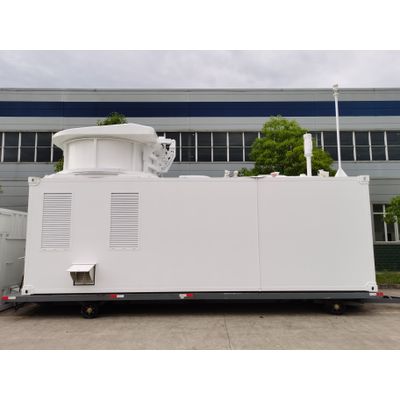

Newsky - Model CF-AS20 -Automatic sounding system
The CF-AS20 automatic sounding system is a fully automatic upper air radio sounding independently developed by our company. It can operate automatically through a preset schedule (or control instructions issued by the operator at the central station) without human supervision, realizing the automation of the entire process of upper air radio sounding, including radiosonde loading, radiosonde detection, sounding balloon inflation, sounding balloon release, sounding data acquisition and processing, and uploading of sounding data products.
Most popular related searches
- Fully automatic unmanned operation;
- Support remote control and management;
- Multi-channel upper air radio sounding capability;
- Automatic fault diagnosis and localization;
- Intelligent monitoring and security protection;
- High reliability and low maintenance costs;
- Adapt to harsh outdoor environments such as deserts, plateaus, and islands.
Container size (Windshield cover closed): 7.5*2.5*3.8 (m)
Container size (Windshield cover opened): 7.5*2.5*6 (m)
Weight: 9t
Radiosonde storage quantity: 64 pcs
Applied balloon: 300g~750g
Inflation pressure: 0.3Mpa~0.8 Mpa
Inflation gas: Hydrogen or helium
Gas source: Gas cylinder or hydrogen generator
Technical mechanism: BEIDOU/GPS
Radiosonde working frequency: 400MHz~406 MHz
Detection ability: Height: 30km, Distance: 200km
Sampling cycle: 1s
Radiosonde working time: ≥160min
Working voltage: AC 380V/220V
Maximum power consumption: 12kw (including AC)
UPS: Can meet one sounding after power outage
