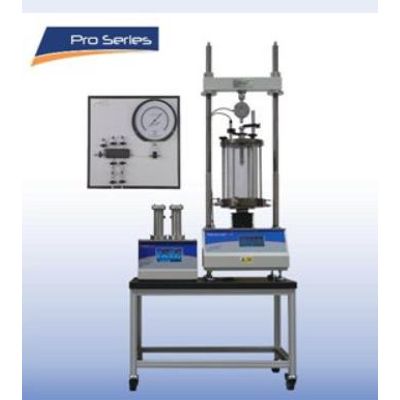

VJ Tech - Model Pro -Automatic Triaxial Testing System

SHARE

The VJ Tech Pro Automatic Triaxial Testing System is capable of providing fully automatic total and effective Triaxial testing for samples up to 100 mm diameter and Loads up to 50 kN including:

Most popular related searches
triaxial testing system
triaxial testing
pressure and volume controller
rock testing system
rock testing
rock test
load cell
soil testing system
water distribution
soil testing
  • Consolidated Drained (CD)
  • Consolidated Undrained (CU)
  • Unconsolidated Undrained (UU)
  • Stress Path tests &
  • Slow Cyclic Testing up to 0.1 Hz (dependent on Amplitude)

The Pro Dual Automatic Pressure Controller is used to control and measure both Cell and Back Pressure and Volume control for Pressures up to 3500 kPa.

Our advanced Clisp Studio software is used via USB or Ethernet connection to set-up and monitor the Test, showing the results as the Test unfolds. Once complete, Test results can be evaluated, and various reports produced and then exported to PC for further evaluation if required.

Pro Automatic Triaxial Testing System

Note: This table summarises ALL available Pro Triaxial Testing System options - obviously some combinations are incompatible. The User can select the most suitable configuration for their testing requirements and check the web pages of individual instruments for their particular specifications. Please contact VJ Tech for additional advice on the optimum System setup.

Advanced TriSCAN Pro Frames 10, 50, 100 or 250 kN (2248, 11240, 22480 or 56200 lbf) with inbuilt datalogging*
Pro Automatic Pressure Controllers     3500 kPa per Channel (508 psi) (Pro Single APCs (1000 kPa (145 psi) ) also available*
Triaxial Cell Sizes 50, 75, 100, 150 mm or 300 mm (2, 3, 4, 6 or 12 inches)
Sample Sizes  35, 38, 50, 70, 100 or 150 mm (1.38, 1.5, 2, 2.75, 4 or 6 inches)
Load Cells 2.5, 5, 10, 20, 50, 100 or 200 kN (562, 1124, 2248, 4496, 11240, 22480 or 44960 lbf)
Displacement Transducers 10, 25 and 50 mm (0.4, 1 and 2 inches)
PWP Transducers 10, 20 or 25 bar (145, 290 or 362 psi)
Water Distribution Panels 2-way, 4-way, 6-way or 8-way
Software Clisp Studio csTRIAX module, csTRIAXADV

*digital sockets are for displacement measurement only (not suitable for feedback control, or load measurement)
