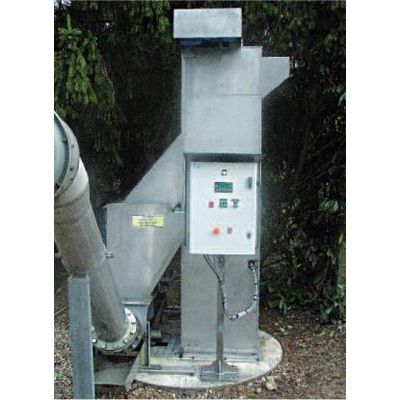

R&O - Automatic Vertical Rake Screen

The R&O automatic vertical rake screen can address all installation constraints, both for new installations and existing works, in the pumping station or in the channel. It is suitable for urban as well as industrial effluents.

Most popular related searches

rake screen

raking screen

automatic raking screen

industrial wastewater

screw press

waste cover

The vertical rake screen from R&O, designed for screening wastewater, is a robust mechanically-welded assembly composed of a frame consisting of sectional tubes and folded plates.
The waste lifting bucket is toothed, to match the form of the screen. It is articulated on a carriage, guided on two slide rails by corrosion-resistance pads,which lowers and lifts the screen within the channel.
The various bucket actions (open, close, raise, lower) are carried out by means of an electric actuator and straps wound around aluminium pulleys and moved using a gear motor.

Installation: in the channel or the pumping station
Materials: 304L or 316L stainless steel
Slide rail pads made of PEHD 1000
Use of polyester straps
Inductive position detectors
Electric actuator for opening the bucket
Gear motor equipped with motor brake
Gap width from 10 mm
Local control unit with PLC and display

Easy operation
Reliability, lifting system using straps
Easy maintenance
Easy to use
Removable covers
Waste compacting by screw or hydraulic press
