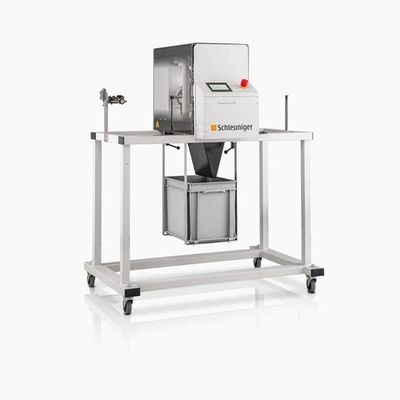

Schleuniger CenterStrip - Model 1000 -Automatic Wire Processing Systems
The CenterStrip 1000 precisely strips insulation windows from wires and multilayer cables ranging from 0.5 to 10 mm² (20 to 8 AWG) to a strip length of 5 to 38 mm (0.2 to 1.4"). With short cycle times, simple operation, and quick changeover, the CenterStrip 1000 is easily integrated into automatic wire processing systems, such as fully automatic crimping machines or cut & strip machines. The CenterStrip 1000 completely removes insulation at programmed positions along the wire. Precise manufacturing of wire-specific blades prevents damage to conductor strands, and all common insulation types can be processed. The easy accessibility with a vertically raising safety cover makes this wire stripper an ergonomically usable and safe machine.
CenterStrip 1000
Metric
- Conductor cross section min.: 0.5 mm²
- Conductor cross section max.: 8 mm²
- Cycle time: 550 m/s
- Strip length min.: 5 mm
- Strip length max.: 38 mm
- Raw material diameter max.: 10 mm
- Electrical connection: 1 / N / PE AC 100-240 V; 50/60 Hz; 2 A; 75 W
- Compressed-air connection: 5-8 bar
- Total weight: 110 kg
- Dimensions/length: 1200 mm
- Dimensions/width: 710 mm
- Dimensions/height: 1450 mm
Imperial
- Conductor cross section min.: AWG20
- Conductor cross section max.: AWG8
- Cycle time: 550 m/s
- Strip length min.: 0.2 in
- Strip length max.: 1.5 in
- Raw material diameter max.: 0.39 in
- Electrical connection: 1 / N / PE AC 100-240 V; 50/60 Hz; 2 A; 75 W
- Compressed-air connection: 72-116 psi
- Total weight: 242 lb
- Dimensions/length: 47.3 in
- Dimensions/width: 28 in
- Dimensions/height: 57 in
