Estone Technology - Model APC-5712 -Automation Computer

Intel® Processor N97 is an industrial-grade quad-core, quad-thread CPU built on Intel's Gracemont E-core architecture (Intel 7 process). With a 2.0GHz base frequency (up to 3.6GHz boost), 6MB L3 cache, and a 12W TDP, it delivers optimized thermal efficiency for fanless designs. Engineered specifically for reliability in rugged edge and embedded applications, this processor balances performance with low power consumption, ideal for compact industrial systems requiring silent, maintenance-free operation in demanding environments.

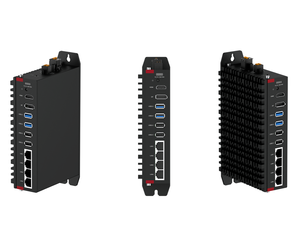

The APC-5712 is a rugged, fanless Automation PC designed for demanding industrial environments. Its compact size (170mm x 112mm x 48mm) and flexible wall/DIN-Rail mounting enable deployment in space-limited enclosures, with operation from -20℃ to 60℃. Ideal for industrial automation, machine vision, edge computing, and IoT gateways, its fanless construction ensures high reliability with minimal maintenance, while 12V~24V DC input tolerates industrial power fluctuation.

The unit delivers comprehensive connectivity: Four network ports support complex topologies, equipment integration, and gateway functionality. Two USB3.0 ports enable high-speed connection to cameras/scanners, while two USB2.0 ports handle peripherals. A dedicated Mini PCIe slot expands communication capabilities with 3G/4G modules. HDMI and DP output driver local displays/HMIs, an audio interface support basic voice function, and programmable LEDs provide visual status/alarm indication for rapid diagnostics.

It's been tested according to IEC 60068-2-64 and IEC 60068-2-27 standards, including random vibration tests and mechanical impact tests. These tests show that the device can stand up to vibrations and shocks really well. Also, it has CE and FCC Class A certification, which means it performs great in terms of electromagnetic compatibility and safety. All this makes it perfect for industrial automation and tough environments.
