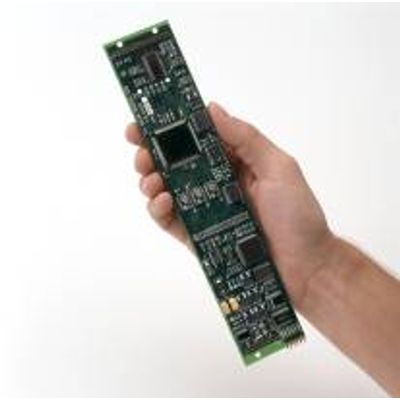

Ocean Sensors - Model OS510 DL -Autonomous Data Logger
Memory: 2 Mbytes FLASH data storage standard, Memory Use: 2 bytes (4 bytes with greater than 16 bit resolution with user defined over-sampling), Time Base: Real time clock (optional external GPS synchronization input).
Inputs:
12 Channels
16 Bit Analog to Digital Converter +/- 3.333V (optional +/- 5.000V)
1 Channel at 1 kHz (8 channels at 500 Hz )
GPS, Radio, Optical strobe, and Motor controller (for opt. equip.)
Telemetry: RS-232 at 57.6 Kbaud (optional radio transmission 9600 baud)
Software: User configurable Windows Software (NT, WIN95) for loading, viewing, adjusting sampling rates, channel over-sampling, number of channels, programmable waits, and start – stop functions
Dimensions: 1.7 x 7.5 inches (4.3 x 19 centimeters)
Power: Ultra low power. 600 uW sleep mode
1000 Hz sampling at approximately 550 mW
0.1 Hz sampling at approximately 54 mW
Input voltage:9 to 15 volts
