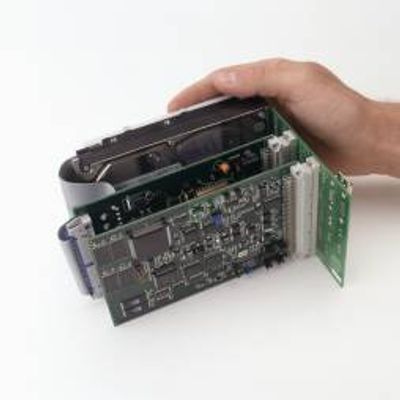

Ocean Sensors - Model OS500 HD -Autonomous Data Logger
Memory Use: 2 bytes (4 bytes with greater than 16 bit resolution with user defined over-sampling); Time Base: Real time clock (optional external GPS synchronization input); Telemetry: RS-232 at 57.6 Kbaud (optional radio transmission 9600 baud).
Memory:
16 Mbytes FLASH data storage standard
High speed dual SCSI drive interface (optional up to 70+ Gbyte each)
Inputs:
12 Channels (expandable to 64)
16 Bit Analog to Digital Converter +/- 3.333V (optional +/- 5.000V)
1 Channel at 1 kHz (8 channels at 500 Hz )
GPS, Radio, Optical strobe, and Motor controller (for opt. equip.)
Software: User configurable Windows Software (NT, WIN95) for loading, viewing, adjusting sampling rates, channel over-sampling, number of channels, programmable waits, and start – stop functions
Dimensions: 4 x 7 inches (10 x 18 centimeters) Industry standard 3U board sets
Power: Ultra low power. 600 uW sleep mode
SCSI burst intervals transferring FLASH data to disk (8 W for 1.5 min. per 14 Mbytes).
1000 Hz sampling at approximately 550 mW
0.1 Hz sampling at approximately 54 mW
Input voltage:9 to 15 volts
