Sulzer Ltd.

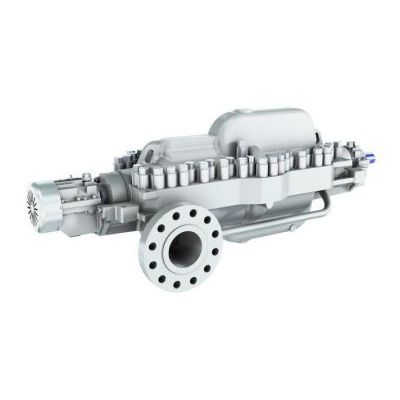

Model MSD -Axially Split Multistage Pump
FromSulzer Ltd.
The MSD pump has the broadest hydraulic coverage of any BB3 type multistage pump in the market. There are over 10 000 MSD pumps installed in product pipelines, boiler feed, water injection and even nuclear safety-related services around the globe.
Most popular related searches
axially split pump
boiler feed water
multistage pump
axial split case
nuclear safety
feed water
boiler feed
boiler water feed
axial pump
split case
- 600#, 900# and 1500# flange ratings to suit project requirements
- Axially split casing means rotor balance is not disturbed when rotor is installed
- Opposed impellers balance axial thrust, saving lube system costs on most applications
- Double suction, first-stage available on most sizes for reduced Net Positive Suction Head (NPSH)
- Industry-leading hydraulic coverage means efficient performance
- Refined product pipeline
- LPG pipeline and CO2 injection
- Boiler feed
- Water injection
- Nuclear safety-related, high-pressure services
- Capacities: Up to 3,200 m3/h / 14,000 US gpm
- Heads: Up to 2,900 m / 9,500 ft
- Pressures: Up to 300 bar / 4,400 psi
- Temperatures: Up to 200°C / 400°F
- Discharge sizes: 150 to 350 mm / 3 to 14 inches
- Maximum speed of rotation: Up to 6,000 rpm
