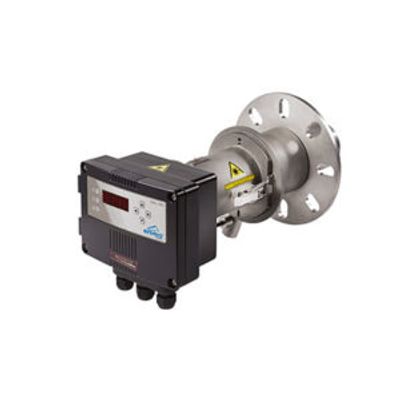

Envea - Model QAL 360 -Back Scatters Particulate CEM System
FromENVEA
TUV QAL1 and MCERTS Approved, Stand alone or networked system option Particulate CEM providing high quality emission measurement for dust concentrations from industrial processes. Having a 0–7.5 mg/m³ certification range, the QAL 360 sensor can be used at low or high dust levels meeting the tightened minimum emission limit value of 5 mg/m³ for Large Combustion Plant specified in the Industrial Emissions Directive. Certified to 7.5 mg/m3.
More about this product— External link
Most popular related searches
particulate continuous emissions monitor
wet electrostatic precipitator
bag filter cartridge
electrostatic precipitator
electrostatic precipitation
dry flue gas
industrial emissions regulations
wet electrostatic precipitation
cartridge filter
flue gas
- ProScatter™ Backscatter sensor technology with superior minimum detection <1 mg/m3
- Certified to 7.5 mg/m3
- Zero and Span (reference) checks available to ensure optimal instrument performance and compliant with QAL1
- Automatic Contamination Check – fully interrogates the optical system
- Purge Flow Fail Sensor option with inbuilt automatic optical shield activation
- Flue Gas Blocker to protect Plant Engineers from harmful flue gases during maintenance
- Stacks after bag filters, cartridge filters, cyclones, electrostatic precipitators, no filtration
- Non-condensing / dry flue gases
Typical Applications:
- Incineration
- Metals (eg Steel/Aluminium)
- Minerals (eg Cement/Gypsum)
- Chemicals (eg TiO2 / Coating Powder)
- Power Generation Plant (eg Coal/Biomass)
- Measured parameters: Dust
- Technology: ProScatter™ Backscatter
- Measurement / Monitoring capability: 0 – 500 mg/m3
- Stack / Duct diameter suitability: up to 10m
- Flue gas temperature: up to 400°C
- Baghouse: YES
- Cartridge Filter: YES
- Ceramic Filter: /
- Coalescent Filter: /
- Cyclone: YES
- Electrostatic Precipitator (ESP): YES
- Wet Electrostatic Precipitator (WESP): /
- Wet Scrubber: /
- Sensor variants: Stainless Steel / Hastelloy® corrosion resistant
- QA checks: YES
- Measurement capability
Certified:
- The measurement system was tested by TÜV Rheinland Energy GmbH in accordance with the European Standards EN 15267 Part 1, 2 and 3 and is QAL1 certified according to EN 14181
- MCERTs certified
