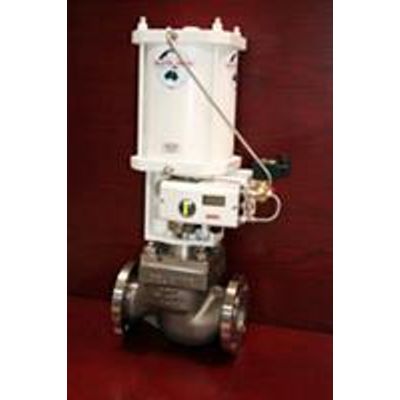

Delatite - Model APV-LLK-3 -Ball Valve

MINING

• Autoclave Inlet & Discharge Isolation
• Slurry Isolation
• Mine Water Isolation
• Concentrate Line Isolation
• Backfill Line Isolation
• Any Slurry Application where tight shutoff is very important due to the possible
• dewatering of a slurry/Concentrate pipe line
• Isolation Valves for Pressure Acid Leach and Pressure Oxidation systems in the
• Nickel and Gold Refining industries.

OIL & GAS

• Separator Isolation Valves
• Oil Line Isolation
• Isolation of any line that carry Water, Oil, and Gas containing formation sands.
• Any other erosive applications

• Repairable in Line
• Rating: ANSI 3200# for all valves
• 3 Basic Valve Sizes to cover 1/2" - 4" Valves
• End Connections
• Butt Weld, Socket Weld, Threaded, Flanged and Special End Connections.
• Sealing Surfaces Coated with Carbide (Coating applied using the latest HVOF Technology)
• Blow-out Proof Stem
• Forged Body
• Seat Faces are outside the Flow Path.
• Repairable ( Replaceable Seats and Trim )
• Valves are available in Special Materials to meet your pressure, temperature, corrosion and erosion needs
• Four Die Formed Packing Rings
• All Valves have a unique Serial Number
• Material Certificates for all pressure containing parts are Supplied and Maintained
• Seat leakage Test
• Conform to MSS SP.61
• Valve can be Fitted with Pneumatic Hydraulic and Electric Actuators,
• Lever Operators and Gear Operators Lever operators up to 65mm valves 80mm and over gear operators
• Repair Facilities are Available
