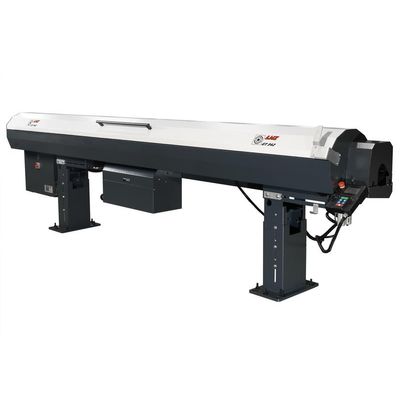

LNS - Model GT 342 -Bar Feeder
FromLNS America, Inc
The GT 342 bar feeder, for long bars from 3 to 44 mm, allows higher spindle speeds for greater throughput from sliding headstock turning machines. The compact base design provides increased rigidity, thus dampening the amount of vibration coming from the bar and improving the overall performance of the machine. The toolless channel design allows for partial changeover of under 2 minutes and full changeover time of less than 7 minutes.
Most popular related searches
Changeover Simplicity
Changeover of bar diameter on magazine tray is performed by a simple manual adjustment via the changeover lever, no tool required.
2 minutes or less for partial changeover
7 minutes or less for complete diameter changeover
The minimal gap between guide channels maintains oil during bar rotation, and one standard pusher length covers the entire range of sliding headstock machines with no pusher extension required.
Robust Design for Exceptional Productivity
The GT 342 is built around an extra heavy, rigid frame filled with mineral cast to further improve long-term stability and vibration dampening.
A Z-axis retract system on the GT 342 allows the bar feed to be moved back 15.35 inches (390 mm) from the machine spindle.
This feature allows easier access for routine machine maintenance reducing production downtime. Simplified design for improved serviceability with easy access to all components.
Easy to Use Remote Control (HMI)
The user-friendly touch screen HMI with prompting menu screens ensures the interaction between the bar feeder and the lathe, and therefore the production process can be run safely and efficiently.
Diameter: 0.12" - 1.73" / ø 3 - 44 mm
Bar Length: 32” - 12’.6” / 800 mm - 3810 mm
Loading Capacity: 11" / 280 mm
Headstock Type: Sliding
Max. Remnant Length: 400 mm
Partial Changeover: 2 minutes or less (within the same guiding elements)
Total Changeover: 7 minutes or less (for all guiding elements)
