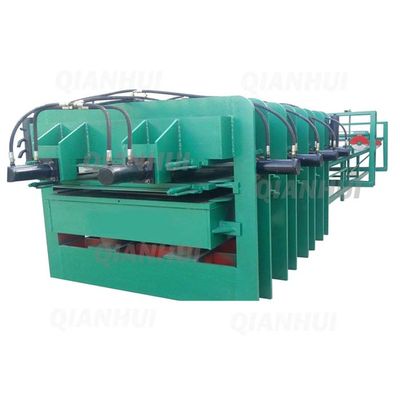

Qianhui - Model BY214x8/3 -Barecore Assembly Line Blockboard Making Machine
The Barecore Blockboard Assembly Press Machine by Qianhui is designed for the efficient assembly and pressing of blockboards. It features a robust cylinder pressing mechanism to ensure high-quality joint formation. With a platen size of 1300x2500x42mm and 3 layers with a layer opening of 100mm, this machine operates under a rated pressure of 25Mpa. Powered by a 20kw motor and utilizing thermal oil as the heating medium, it handles dimensions of 11000x2200x1800mm and weighs 12000kg. The system employs computerized control to optimize productivity and features a double cross frame structure capable of withstanding pressures up to 22 Mpa. This ensures output boards are flat and easily sandable. The machine's design supports four-side pressing to improve stretch and pressure resistance as well as board flatness. It integrates multiple processes including block jointing, cutting, and automatic feeding, making it suitable for producing various sizes of blockboard, solid board, and plywood with minimal labor intensity.
- Model No. : BY214x8/3
- Hot Platen Size : 1300x2500x42mm
- No.of Layers : 3Layers
- Layer Opening : 100mm
- Rated Pressure : 25Mpa
- Cylinder : φ180x6sets
- Motor Power : 20kw
- Heating Medium : Thermal Oil
- Dimension : 11000x2200x1800mm
- Weight : 12000kg
- This block board hot press machine is used to joint the blocks and press to core blockboard,with four sides pressing
- Cylinder pressing to guarantee the joint quality
- First joint compactly,then cut,which makes the wood batten length error less than 1 mm
- Computerized control system improving the working efficiency.
- To make the most of the wood material
- High productivity and pressing speed,suitable for the quick pressing of big size boards
- Servo driving system,electrostatic adhesion,integral infeed and outfeed system,CNC control system,synchronizing screw transmission system.It adopts the double cross frame structure,which can take the oil pressure 22 Mpa,So the finished boards are flat,no wrapping,and easily sanded,
- It adopts the four sides pressing system ,which can joint multiple blocks seamlessly,and can improve the stretch resistance,pressure resistance and flatness of the core board,and guarantee the quality of the finished board,It integrates block jointing,cutting,auto feeding,auto pressing,suitable for making different sizes of blockboard,solid board,finger jointing board,shutting plywood ect shaping of core board,It increase the working efficiency and decrease labor intensity,
