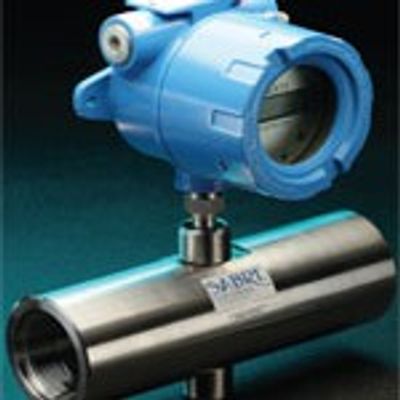

Sure Flow - Model GT-TW Series -Basic Turbine Flow Meter

RUGGED AND COST-EFFECTIVE All
stainless steel construction and tight machining tolerances make for excellent durability/long life.

INDUSTRY STANDARD
This fl ow meter comes with a standard NPT end connections for universal applications.

VERSATILE
The meter or just the meter internals are perfect drop-in replacements for NuFlo/Haliburton and Blancett turbine fl ow meters.

ELECTRONIC INTEGRATION
This meter can accept a variety of existing electronics, such as the MCII, MCIII and BL2800.

SIMPLIFIED MAINTENANCE
Maintenance is easy with the rotor replacement kit. Rotor can be replaced in just 2-3 minutes.

• FLOW RANGES: 5 – 50 GPM (gal/min), 40 – 400 GPM
• PRESSURE: Working pressure up to 5,000 psi
• ACCURACY: ± 1% of reading or better
• REPEATABILITY: ± 0.1%
• TEMPERATURE: Fluid temperature of -150° to 325°F
• FILTRATION: 300 microns
• Clear flow tube allows for view of process and scale
• END CONNECTIONS
• NPT
