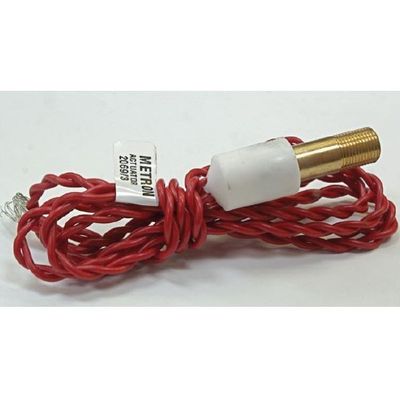

GW - Model DR2003/C3 -Basic, Twisted Pair, Multistrand, Red Metron Actuator
The Metron Actuator allows the MJC to be activated by a electrical input as well as by heat. Metron Actuators (Type DR2003/C3) are designed to produce a high mechanical work output by ignition of a very small quantity of explosive which produces a high pressure gas forcing a piston to extend from the body of the device. They are electrically actuated and will operate within milliseconds of receiving the appropriate impulse; a rate which is almost impossible to achieve with a mechanical source of energy. Their compact size, high reliability and good environmental resistance make Metron Actuators ideal for use in Fire Protection, Security, Safety and Aerospace applications.
SINGLE ACTUATOR FIRING:
The required battery or power supply voltage (AC or DC) may be calculated from the product of the recommended firing current (I) for the device in question and the total circuit resistance (R) i.e. V = IR. The Metron Actuator is not polarity sensitive. Recommended range of power supply voltage: 9V -110V.
MULTIPLE ACTUATOR FIRING:
When more than one actuator is to be fired in a circuit, series firing is recommended as being the simplest method. If actuators are wired in series it is essential that the minimum series firing current stated in the table above (3.0 amp) is provided for a minimum of 10ms. In multiple firing circuits all actuators must be of the same electrical sensitivity (e.g. Type 1). On no account must devices of different manufacture or electrical sensitivity be mixed in the same circuit.
Where parallel firing is considered necessary, extreme care must be taken to ensure balanced resistances and the *) possibility of the actuator circuit remaining intact after firing must be borne in mind.
DEVICE FUNCTION TIME: Depends on load and electrical current applied, but is typically 10 to 20ms.
RELIABILITY: 0.999 at 95% confidence level.
ENVIRONMENTAL: Working Temperature –40°C to + 100°C (for up to 20 hours provided any temperature greater than +70°C occurs immediately prior to firing). Storage Temperature: –30°C to +70°C.
LIFETIME: Service life is 10 years.
CLASSIFICATION: Excluded from UN Class 1. Metron Actuators are classed as non explosive. Metron Actuators can be shipped by any means of transport including post or air with no special precautions.
APPROVALS: Metron Actuators have been approved by the LPCB (Loss Prevention Certification Board) and registered with Lloyds Register of shipping.
MATERIAL: Piston - machined stainless steel; Case - brass, threaded over part of its length. Environmental resistance is achieved by the use of a soldered glass/metal seal header and an integral brass septum.
