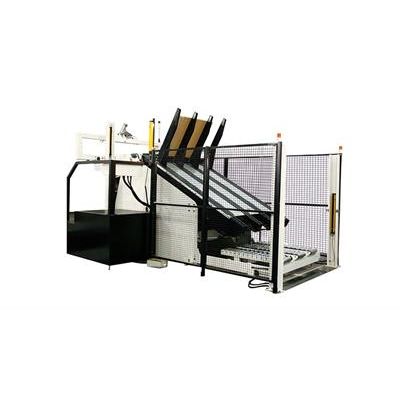

Eternal - Model CS3005F -Batch Feeding Prefeeder
The prefeeder CS3005 is a combination of the automatic feeding, usage simplicity and budget. The machine can operate completely in automatic. Only the removal of the last sheet under the stack has to be done manually. The prefeeder does not require peculiar format adjustments and it is particularly suitable for short runs. The machine is fixed to the floor and has a telescopic belts deck to adjust the feeding position to the board length. The prefeeder feeds the production machine with shingled board where the shingling overlap is adjustable. The belt deck is adjustable in height.
Most popular related searches
Options for CS3005F
- OPT 1:Double Batch Centering Spankers for CS3005F
- OPT 2:Pneumatic Top Arm for CS3005F (For Top Print)
- OPT 3:Device to Download the Empty Pallet for CS3005F
- OPT 4:Pneumatic Side Jogger for Feeding Unit
- OPT 5:Conveyor for CS3005F
- Sheet Width Max: 3100
- Sheet Width Min: 600
- Sheet Length Max: 1700
- Sheet Length Min: 250
- Bundle Height Max: 1800
- Bundle Height Min: 400
- CS3005F Efficiency Unit (sheet/min)
- B Flute: 150
- BC Flute: 85
- CS3005F Specification Unit (mm)
- Total Length: 5911
- Total Height: 2750
- Total Width: 3236
- Conveyor Width: 1390
- Conveyor Length: 800
- Sheet Receiving Table Height: 342
