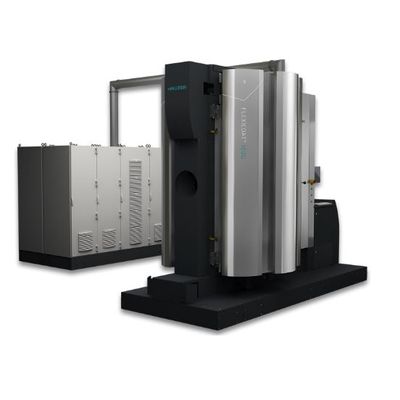

Hauzer Flexicoat - Model 1500 -Batch System
The Hauzer Flexicoat 1500 is the largest Flexicoat system, a real 24/7 mass-production workhorse. It is a favourite among OEMs and coating service providers for decorative coatings on sanitary hardware, for mass coating of automotive components, and for coating large forming and moulding tools and saw blades. The Flexicoat 1500 has two doors with three cathode positions each. It is installed on two frames for more layout possibilities, and comes with a range of options for loading equipment and parking docks.
Effective coating volume: Ø 900 x 1500 mm or Ø 1030 x 1500 mm
Internal chamber size: 1230 *1230 * 1925 mm
Max. system temperature: 600 °C
Product tables: range of tables for specific product dimensions
Max. heating power: 66 kW
Max. load: 3000 kg
Amount of positions for deposition technologies: six
Available technologies:
Rectangular arc
CARC+ Flex
Magnetron sputtering
HiPIMS
Dual magnetron sputtering
Microwave
Focused-ion rapid etch
Plasma nitriding
Flexicoat 1500 Max variant: Larger table diameter for even higher productivity
