A&D - Battery Management Systems (BMS)
The testing of Battery Management Systems (BMS) with real Li-ion batteries can be costly and time consuming. Using a system such as A&D’s BMS Hardware-in-the-Loop (HiL) system will help shorten the development cycle of a BMS system. In addition to reducing the cost and time it also makes BMS testing more flexible and traceable, easier to reproduce and safer when testing beyond the normal range of battery operation. A&D has taken great care in developing state-of-the-art BMS Testing and HIL Simulation.
Most popular related searches
temperature monitoring
high-temperature monitoring
monitoring enclosure
contaminant modeling
noise monitoring
contamination monitoring
noise modeling
- Simulate up to 192 battery cells
- Expandable in increments of 12 cells
- Multi-functional
- Disconnect function
- Voltage monitoring
- Current measurement
- Noise contamination (optional)
- Supports modeling in Simulink®
- Storage space for BMS available in rack
Multi-functional and Compact
- Battery cell voltage output, cell voltage/current monitoring, disconnection, and noise superimposition are integrated into a dedicated battery HILS I/O board.
- A single I/O board can simulate 12 cells. The number of cells can be expanded by adding additional boards (up to 192 cells).

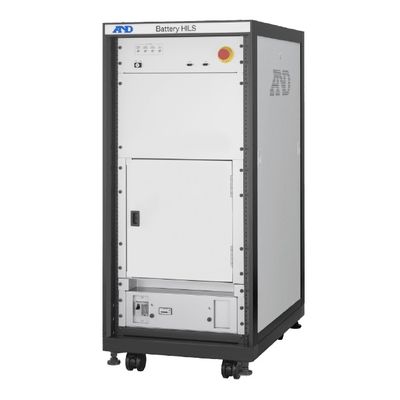

- System Size: 570 (W) x 1440 (H) x 850 (D) mm and can support up to 192 cells.
- As the system is based on the HILS platform “HELIOS”, it supports various sensors, simulated switches, and communication functions.
Safe Design
- Special storage area for the BMS provides safety from high-voltage parts.
- Temperature monitoring inside the enclosure and overcurrent protection are provided for unattended continuous operation.
Ready to Use
- Standard applications (Simulink model + operation GUI) with functions such as cell voltage setting and measurement is provided.
- Provides system construction engineering from model integration to BMS connection.
Battery Model
- Battery models from Nexty Electronics can be used.
- Calculates battery status such as cell voltage, temperature, and charge rate by inputting load current to the battery model.
- Any other custom Simulink based Battery Model can be integrated.
- Size (System Rack): 570 (W) x 1440 (H) x 850 (D) mm
- Cell Voltage Output Range: 0 to 5 V
- Cell Voltage Output Accuracy: ±1 mV
- Cell Voltage Output Output Current: ±200 mA
- Cell Voltage Measurement Functions: 0 to 5 V
- Cell Current Measurement Functions: ±200 mA range / ±20 mA range
- Failure Simulation: Yes
- Noise Overlap: Please contact us for detailed specifications.
