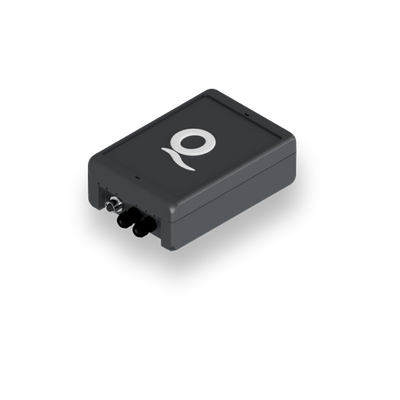

Aqua Robur - Model Fenix Hub 150 -Battery-Powered Sensor Node
The Fenix Hub 150, a battery-powered sensor node, is crafted for swift and uncomplicated on-site measurements. Leveraging communication protocols like NB-IoT/LTE-M, it facilitates wireless monitoring across the entire pipeline network. With its user-friendly Plug & Play design, the system enables measurements to commence seamlessly, eliminating the need for managing gateways or intricate IT infrastructure. The energy-saving mode optimizes battery life by adjusting measurement intervals based on configurable threshold values. Our sensor nodes are compatible with various sensor protocols and can use different types of sensors, including level, flow rate, and temperature.
Most popular related searches
Software & Electrical
- Radio technology: NB-IoT or LTE-M
- Number of I/Os: 8
- Sensor protocols: Digital high/low, Pulse counter, 1-wire, I2C, UART
- Sample interval external sensors: Down to 1 min
- Transmission interval of sensor data: 5 min to 24 h
- Voltage level of external sensors: 3.3 V / 3.6 V
- Firmware upgrade: Over radio link/FOTA, wired
- Device configuration: Remote, by web portal
- Batteries: 2 x SAFT 33600, 3.6V. Total energy capacity of 34 Ah | 122 Wh
Mechanical
- Operating Temperature: -20° C to +45° C
- Operating humidity range: Max 80 % RH
- Dimensions (L x W x H): 200 x 150 x 80 mm
- Weight: 0.65 kg
- Enclosure material: PC, UL94, V0
- Cable gland: 1x 7 – 10 mm cable diameter 2x 3,5 - 7 mm cable diameter
- Certification: CE
