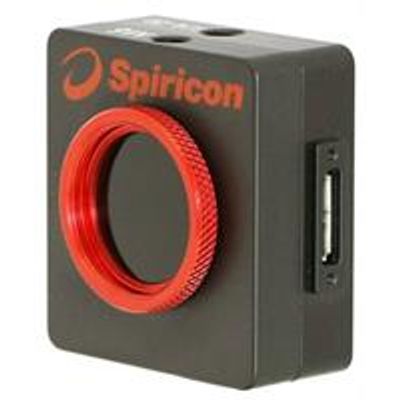

Ophir - Model SP928 -Beam Profiling Camera
The SP928 camera accurately captures and analyzes wavelengths from 190nm - 1100nm. It features a compact design, wide dynamic range, unparalleled signal to noise ratio, and built-in pre-triggering circuitry that makes it ideal for measuring CW and pulsed laser profiles.
Most popular related searches
- 1928 x 1448 pixel resolution with a3.69µm pixel pitch
- 13 fps at full resolution
- BeamGage Standard or Professional software included
- Wavelengths 190-1100nm
- Beam Sizes 37μm - 5.3mm
- Interface USB 3.0
- Sensor Type Silicon CCD
- Compatible Light Sources CW, Pulsed
- Active Area 5.3mm x 7.1mm
- Elements 1928 x 1448
- Effective Pixel Pitch 3.69µm
- Dynamic Range 56dB
- Frame Rate at Full Resolution 13 fps
- Compliance CE, China RoHS
