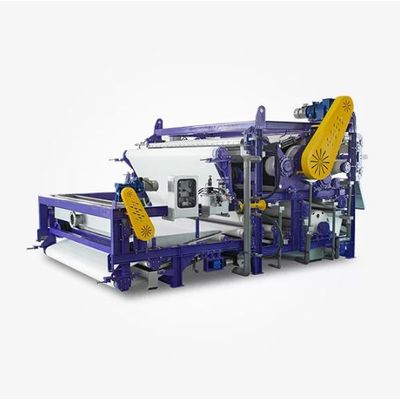

Belt-Press
Belt-press is a product that uses the pressure of rollers on conveyor belts to press sludge. Sludge is pressed into thin thickness, has a low moisture content, and quick drying. The main components of the belt press include conveyor belts, rollers, etc.
Production technology: South Korea
Assembled: Manufactured and assembled in Vietnam
Sludge: Low humidity, reduced to 65% with high-pressure belt-press
Price: Affordable cost
Structure: Durable structure, outstanding longevity
Operation: Simple, automatic, easy cleaning
Repair and maintenance: Fast, replacement components available in Vietnam
In recent years, the demand for sludge presses has increased. Companies are increasingly aware of the importance of sustainable development.
Growth in production scale must go hand in hand with environmental protection. Not only serving the Vietnamese domestic market, but ARK is also a reliable and strategic partner of many foreign enterprises.
Belt-press (Belt-press dewartering machine) is one of the most important products that ARK Vietnam manufactures and distributes. Belt press of ARK is a new generation of sludge dewatering machines.
We inherit Korean achievement. The machine is manufactured and assembled in Vietnam. The modern production line is directly imported from the land of kimchi. The working principle of belt-press is quite simple. Water shall be pressed out of the sludge under the pressure of the rollers on conveyors.
We have many decades of experience in homeland South Korea, and more than 10 years of presence in the Vietnamese market.
ARK sludge dewatering plays a pivotal role in dozens of large and small wastewater treatment projects. Continuous and durable operation in different environments. Suitable for many types of wastewater with complex physicochemical properties.
Belt-press in particular and other ARK sludge dewatering machines in general, are optimally designed.
It could operates effectively in the treatment of municipal wastewater, feedwater, industrial zones, factories of food processing, slaughtering livestock, poultry, seafood, paper-making, dyeing, tanning, metal plating, mining ...
The Belt-press uses the pressure of the rollers on the conveyor to extract the water. Sludge is pressed into thin sheets, low moisture content. The main components of the machine include the conveyor belt, the rollers that press the sludge between the belts.
Other parts are alignment devices, gears to help to stretch the conveyors. The goal is to keep them from sagging. The high-pressure belt-press version has a hydraulic booster system that increases the pressure on the conveyor. Therefore, finished pressed sludge would have humidity is 60-65%, it is better to compare with conventional belt-press.
The machine has an open structure. The sludge-polymer reaction tank for sludge precipitation is designed separately. The first stage requires the sludge must be concentrated, flocculated by polymers.
Then exceed water is extracted by gravitation before being fed into the pressing rollers. This initial process increases the sludge concentration from 0.5 - 3% to 5 - 15% by volume. The pressed sludge cake has a moisture content of 60-85%. It depends on the properties of the inlet sludge, the high-pressure version, or the normal version of belt-press.
