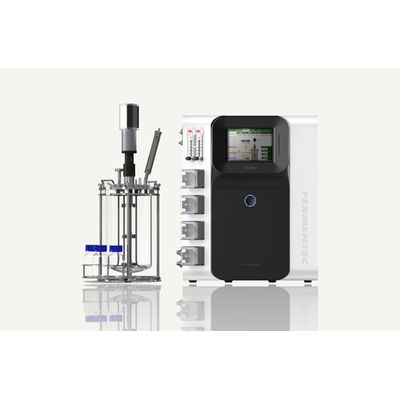

Fermentec - Model FMT ST Series -Benchtop Fermentor
FromFermentec
Credibility and precise control are important for the lab scale fermentor. The FMT ST series control system, a touch screen computer loaded with HMI, can easily and accurately control diverse variables. This system, which is a standard-type fermentor for experiments, was produced in a way that enables data to be easily input-output and processed.
Most popular related searches
benchtop fermenter
mass flow control
flow control
borosilicate glass
mass flow
pH control system
gas controller
gas control
transfer valve
digital temperature controller
- Structured in a single shell vessel, with a cartridge heater & cooler applied
- 8.4" touch screen computer with HMI allows for easy operation
- PLC adopted as a main control system
- Loaded with an interlocking control program to enable the cultivation of various conditions
DO interlocking function - Agitation Speed
FEED interlocking function - dissolved oxygen, supply time
PH interlocking function - feed rate, dissolved oxygen - A controller whose reliability can be guaranteed has been adopted.
- Cylinder borosilicate vessel (Pyrex glass)
- Agitation system: mechanical seal used
- Various nozzles made with precisely processed STS 316L and parts guarantee the highest level of confidence.
- Elegant design considered for easy repair and cleaning
- Autoclavable single shell borosilicate glass vessel
- 3~14L total volume
- Electro polished STS316L head plate & bottom plate
- Nozzles
-Inoculum port : Flaming (option: Septum nozzle or aseptic inoculation valve)
-Cartridge heater & cooler
-Temperature, pH, DO, foam sensor (option : ORP, level, OD sensor)
-Exhaust & condenser
-Agitation
-4 media feeds
-Sampling & harvest (option: Aseptic transfer valve) - Agitation
-Single mechanical seal
-High torque 60 W BLDC motor (30~1,200 rpm)
-3 baffles or more - Aeration
-Ring sparger (option : 1~10? micro sparger)
-0.2? disposable hydrophobic filter with check valve - Removable addition bottles support
-Peristaltic pump with tubings - Impeller
-Rushton type/Pitched blade/Marine blade - Gas flow
-2 gas control rotameters
(option : 4 rotameters or 1~4 mass flow controller)
-Flow rate
0.3~3 L/min
0.7~7 L/min
1~10 L/min
1.4 ~ 14 L/min
- 8.4" or 17" touch screen computer
- 1 to 12 vessels intelligent control
- 16 control loop per vessel
- Temperature control : heating/cooling (option : water chiller)
- pH control : acid/base agent
- Agitation control : 30 ~ 1,200 rpm
- DO control : PID cascade control with agitation, feeding and gas flow rate
- Feed control : fed-batch control by time, DO, pH
- 4 pump control : acid, base, anti-foam, feeding easily calibrated pump
- 8 multi trend log data per vessel
- Easily calibrated sensors
