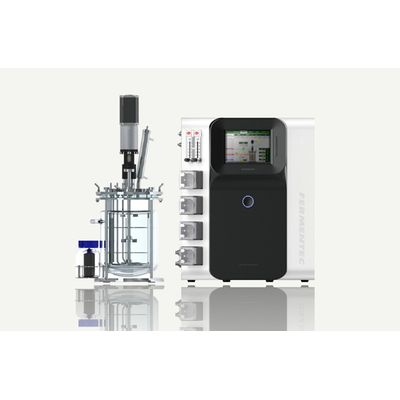

Fermentec - Model FMT DS Series -Benchtop Fermentor
FromFermentec
A model with a jacket-type, double-shell vessel structure that is ideal for the cultivation of plant and animal cells. Quick coupling and a sliding-type peristaltic pump have been adopted for the exhaust gas condenser.
Most popular related searches
benchtop fermenter
mass flow control
peristaltic pump
gas controller
gas control
digital temperature controller
flow control
borosilicate glass
mass flow
pH control system
- Precisely controls temperature using a double-shell vessel
- An 8.4"touch screen computer with HMI that can be conveniently operated
- PLC adopted as a main control system
- Loaded with an interlocking control program to enable the cultivation of various conditions
DO interlocking function - Agitation Speed
FEED interlocking function - dissolved oxygen, supply time
PH interlocking function - feed rate, dissolved oxygen - A controller whose reliability can be guaranteed has been adopted.
- Cylinder borosilicate vessel (Pyrex glass)
- Agitation system: mechanical seal used
- Various nozzles made with precisely processed STS 316L and parts guarantee the highest level of confidence
- Elegant design considered for easy repair and cleaning
- Double shell vessel perfect for cell culture: precisely controls temperature
- Autoclavable double shell borosilicate glass vessel
- 1~14L total volume
- Electro polished STS316L head plate & bottom plate
- Nozzles
-Inoculum port : Flaming (option: Septum nozzle or aseptic inoculation valve)
-Temperature, pH, DO, foam sensor (option : ORP, level, OD sensor)
-Exhaust & condenser
-Agitation
-4 media feeds
-Sampling & harvest (option : aseptic transfer valve) - Agitation
-Single mechanical seal
-High torque 60 W BLDC motor (30~1,200 rpm)
-3 baffles or more - Aeration
-Ring sparger (option : 1~10? micro sparger)
-0.2? disposable hydrophobic filter with check valve - Removable addition bottles support
-Peristaltic pump with tubings - Impeller
-Rushton type/Pitched blade/Marine blade - Gas flow
-2 gas control rotameters (option : 4 rotameters or 1 ~ 4 mass flow controller)
-Flow rate
0.3~3 L/min
0.5~5 L/min
0.7~7 L/min
1~10 L/min
1.4~14 L/min
- 8.4" or 17" touch screen computer
- 1 to 12 vessels intelligent control
- 16 control loop per vessel
- Temperature control : heating/cooling (option : water chiller)
- pH control : acid/base agent
- Agitation control : 30~1,200 rpm
- DO control : PID cascade control with agitation, feeding and gas flow rate
- Feed control : fed-batch control by time, DO, pH
- 4 pump control : acid, base, anti-foam, feeding easily calibrated pump
- 8 multi trend log data per vessel
- Easily calibrated sensors
