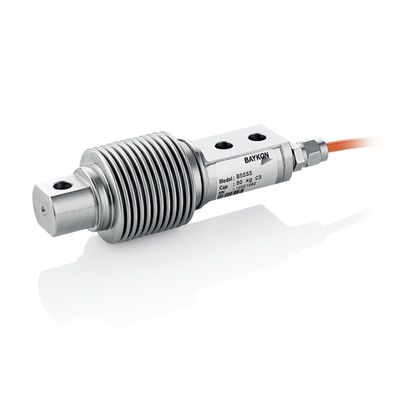

Baykon - Model BS555 -Bending Beam Load Cell

Model BS555 and BS555S are high-precision load cells with capacities ranging from 5 kg to 500 kg with OIML R60 C3 approval. Model BS555 is made of nickel alloy steel with stainless steel bellows, and BS555S is in complete stainless steel construction. With its OIML R60 C3 approval and IP68 protected construction, it is perfect choice for applications such as low profile platforms, weighing and bagging machines, conveyor, hopper and low capacity vessel weighing systems. ATEX approved BS555 / BS555S load cells are suitable for use in explosive environments. Key Features • 5~500 kg Capacities • BS555 Nickel plated alloy steel stainless steel bellow BS555S All stainless-steel construction • OIML R60 C3 approved • ATEX approved (optional) Zone 0, 1, 2, 20, 21, 22 • Protection class: IP68
