Econord - Bin Lifter

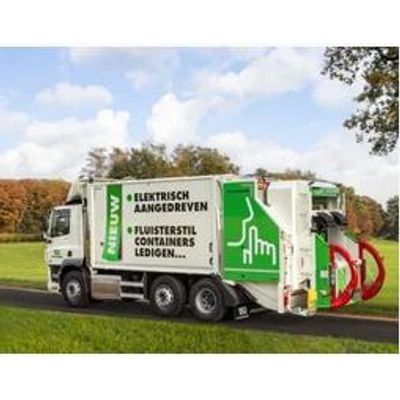

EcoNord bin lifters are powered entirely by vehicle batteries and weigh only 620 kg. They have 15% more capacity than fuel-driven bin lifters and don’t involve hydraulic hoses, valves or other wear-and-tear parts. EcoNord bin lifters require only a short mounting time and fit all standard rear-end RCVs. The equipment also requires only short maintenance times due to interchangeable parts. The equipment’s easy install/removal feature and adaptability to mixed rounds (bag and bin) mean better utilization of our customers’ RCV fleets and help create an environment free of emissions and noise pollution.
Profile: Fully Electric Automatic Double Chair Bin Lifter
Operation: Electric motor with gearbox and driver
Easy fit on any standard rear-end loaded RCV. Can be easily fit to both new and older vehicles with only minor modifications. A standard DIN-frame is required. Connected to the 24 volt DC supply from the batteries on the vehicle, through a power inverter to provide the 230 AC voltage required to operate the EcoNord Bin Lift.
General description
EcoNord Automatic Bin Lift incorporates a double split chair with two combs. It is suitable for any standard 2 wheeled bins and containers (EN 840-1) with a capacity of 80 to 360 liters (adjusted lifting limit at 140 kg.) and any standard 4 wheeled container (EN 840-2/3) with a capacity of 500 to 1280 liters (adjusted lifting limit at 350 kg.). Adjustable cycle times from 7 seconds for two-wheeled bins, to 14 seconds for four-wheeled bins.
Specifications
- Loading height: 1,523 mm
- Ground clearance: 500 mm
Noise level
The engine of the RCV operates at idle during bin lift operation, thereby keeping noise and fuel consumption to a minimum, while reducing exhaust emissions significantly. Operational noise level of the bin lift is measured at only 45dB.
Maximum safety
- The EcoNord electric Bin Lift carries the CE mark of approval and complies with the safety standards EN1501-1, EN1501-5.
- Emergency stop buttons are fixed on the side protections and on the controls on both sides of the bin.
- Each comb is equipped with a presence sensor recognizing the presence of the container and 2 sensors confirming good grip and position.
- Safety sensor operates in descent mode to prevent serious injury.
- The comb is equipped with a sensor recognizing the presence of a bin.
- No uncontrolled power means much safer operating environment.
- Specifically designed to avoid any crushing hazards.
- Side protections consisting of padded safety barriers covering the operating zone.
- Fitted with a comb for 4 wheeled containers.
Cleanliness
- Integral set, no shearing risks (no scissors).
- No flexible hoses. No hydraulics.
Modularity
- Collection of 2 and 4-wheel bins and containers.
- Mixed collection (bags, bins and containers). Replacement of a chair takes less than 30 minutes.
Easy fit
DIN-standard frame. Space of 1.0 m x 0.5 m needed for fitment of inverter box, typically near the batteries—other locations include on the body behind the cab or on the roof.
Power
- Batteries (180A+)
- Alternator (85A+)
- The lift operates from the vehicle’s electrics; there are no battery packs or other power supplies. Electrical connection to body: standard 16-pin / 24v plug configuration CATIII.
