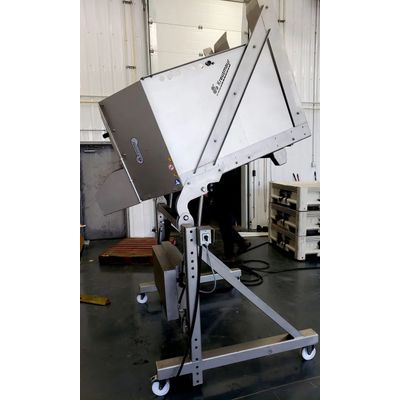

Juicing.Systems - Bin Tipper

• Plug and play operation, the Bin Tipper is delivered ready to start work
• Fits bins of various sizes 40-48″ (1000-1250mm)
• It just needs plugged in to a 16 amp socket
• Easy to use and operate, no difficult controls
• Stainless steel construction means the GKE is easy to clean and maintain

Orchard bins of fruit or vegetables are fork lifted or pallet jacked into the GKE’s sturdy lifting frame. The operator can then tilt and empty the bin tipper into a washer/elevator or onto a sorting table by simply turning the switch. The GKE’s hydraulic lifting mechanism does the rest. A sliding gate regulates the flow of produce out of the bin to ensure an even flow.

• Ready to use construction
• Designed to be used with bins from 40″ up to 48″ (1000-1250mm)
• Constructed from stainless steel
• Compact design
• Integrated control cabinet
• Adjustable height discharge chute
• Transport wheels for maneuverability
• Easy to clean and maintain
• Designed to work easily with other equipment
• UL / CSA / certification available

• Dimensions LxWxH : 1680 x 1680 x 1800 mm
• Emptying height : Up to 1200 mm (47.25″)
• Height when tilted : 2420 mm (95″)
• Operating cycle time : 30 sec
• Weight : 350 kg (770lbs)
• Lifting Capacity : 1200lb (550kg)
• Electrical connection (V/A) : 208-480V/16A
