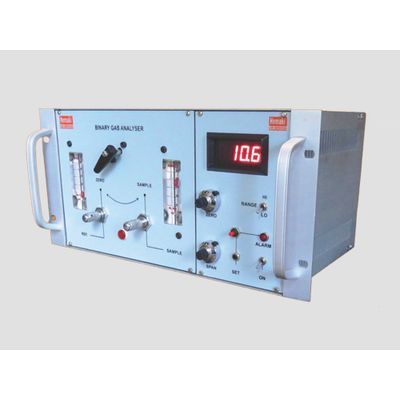

Binary Gas Analyzer
The BGA - TCD is a Thermal Conductivity based Gas Analyzers used to measure and monitor binary gas streams. It can also monitor one component in a more complex gas mixture when the background gases have the same ratio to each other, or have similar thermal conductivity values.
Most popular related searches
gas analyzer
gas purity monitoring
binary gas analyzer
gas mixture
calibration gas
thermal conductivity gas analyzer
gas calibration
needle valve
gas cylinder storage
sample gas
- 0 to 100.0% Resolution 0.1% (For Ar./N2 - N2 in Argon) (Ar/H2)
- 0 to 100.0% Resolution 0.1% (For Ar./CO2 - CO2 in Argon) (Calibration gas required near sample gas)
- Online operation only (not for CO2 pressurized liquid mixture in gas cylinder)
- Four Filament TCD (imported) Diffusion type.
- Change over valve for sample and reference.
- Two needle valves and Rota meter for Gas Flow Controls.
- Digital Display 3 1/2 LED with 0.1 % resolution.
- Zero & Span for (Or two points) control for callibration to get direct read out of % selection
- Switch for % mA current indication.
- Automatic current control as per gas Thermal conductivity
- Cabinet - table mount or panel mount
- This instrument can be used for any other gas mixture ( Non Corrosive) or On-line gas purity monitor. You must have refrence gas and calibration gas accordingly.
