In his type of Ring Shear apparatus, the ring-shaped soil specimen is enclosed inside a rigid set of discs (external and internal). The maximum height of the specimen can reach 20 mm, which makes it less sensitive to the presence of large particles in the soil and any friction developed against the confining rings is measured. An adjustable gap is created between the upper and lower soil mass, on the sliding surface, to minimise the friction between the fixed upper portion of the annular specimen and the rotating lower part. Soil-soil and soil-steel interface tests can be conducted with the Bishop Ring Shear apparatus.
Most popular related searches

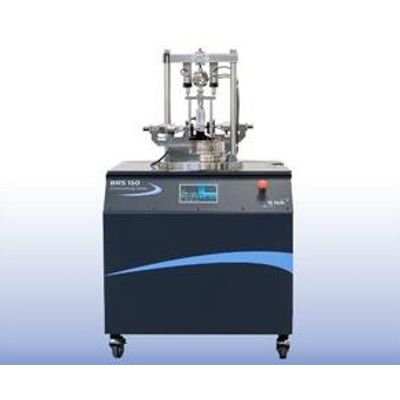

Bishop Ring Shear Pro System
Features:
- Conforms to BS EN ISO 17892-10: 2018
- Bishop style design
- Fitted with 3 DDEN Load Cells and one S-Beam Load Cell
- Fitted with 3 LSCTs
- USB or Ethernet Interface for computer control
- Integrated 7" Touchscreen Display for standalone control
- Test setup and control facilities
- On-board data logging (16 Gb) able to store thousands of Tests, each with thousands of data points
- Data export via USB link for manipulation within Excel
- High speed ARM processor
- High speed sensor data conversion (24 bit, up to 5000 samples/sec)
- Built-in live data table and graphs
- Built-in auto protection for sensor limits
- Non-volatile Memeory for sensitive data
- Top cap assembly available for soil-steel interface testing
Detailed product specifications
| Sample Size | 150 mm outside diameter x 100 mm inside diameter x 20 mm height |
| Speed Range | 0.0001 to 600 degrees/min |
| Vertical Load | 10 kN as default |
| Horizontal Load | 5 kN as default |
| Maximum Shear Stress | 1000 kPa |
| Maximum Normal Stress | 1000 kPa |
| Dimensions (W x D x H) | 780mm x 720mm x 1370mm |
| Weight | 220 kg |
| Electrical Requirement | 220-240 Volts, 50/60Hz, single Phase |
