Cyclonaire Corporation

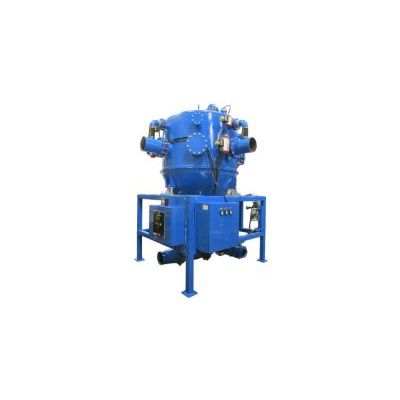

Model CB Series -Blend-Veyor
The CB Series Blend-Veyor is a vacuum-loaded, semi-dense phase blender and conveyor with a capacity of up to 80 TPH. It is best suited for multiple sourced, powdered, granular or pelletized abrasive materials that are friable. Medium pressure blower air is used to venturi-vacuum load and convey two or more materials at lower line velocities and higher material-to-air ratios, minimizing abrasive wear and particle degradation. The unit is capable of multiple applications, from blending, bulk carrier unloading or in-plant transfer. The CB-Series also weighs and batches with inventory control.
Most popular related searches
positive displacement blower
vacuum loading
rotary airlock
epoxy coating
load cell
pressure blower
conveyor system
soil remediation
pelletizer
blower
- Proprietary combined blending (two or more materials) with semi-dense phase conveying. Uses a single 15 PSIG positive displacement blower for vacuum-pressure conveying at low line velocities (2000-3000 fpm) and high material-to-air ratios (50-20) for less product. degradation and less abrasive line wear.
- No costly pits or overheads required.
- Vacuum or vacuum assisted load via single or multiple inlets from any direction(s).
- Less operator supervision via automated controls.
- Standard Features:
- Carbon steel
- Load cells
- NEMA 4 controls
- Two inlets
- Additional Options:
- Portable or stationary
- Stainless steel or epoxy coated
- Multiple inlets
Applications:
- Blending, bulk unloading, in-plant transfer, scaling, batching
- Combined blending and conveying in one unit
- Excellent solution for rotary airlock replacement with difficult applications
Capacity:
- 5 – 80+ TPH
Ideal Material Type:
- Powdered, granular, pelletized materials that are abrasive or friable
Requirements:
- 110 VAC, 50-60 Hz or 12 VDC
- 15 PSIG air; 90-100 PSIG control air at 3-5 scfm
