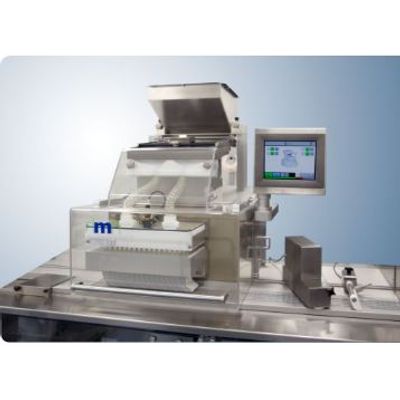

SYPRO - Model DUAL 200 -Blister Machine Feeder System
The SYPRO DUAL 200 is a versatile feeder system designed for integration with both intermittent and continuous motion blister machines. This self-contained unit features seamless communication with various blister machine types via signals, ensuring compatibility with plate and rotary sealing mechanisms. The feeder system accommodates feeder cassettes with draw offs up to 500mm and operates using electricity with all motions controlled by servo motors, eliminating air contamination risks. The touch screen control panel allows for precise adjustments and the saving of product-specific settings as recipes, significantly shortening changeover times. The design emphasizes user-friendliness, with the capability to fine-tune stopper pins for various product shapes. Essential components include a tray, separation unit, filling shoe, drive assembly, linear conveyer, hopper, safety guard, and a human-machine interface, ensuring a comprehensive solution for efficient blister packaging processes.
The system runs on intermittent as well as continuous motion blister machines. With this highly efficient feeder system HMH offers you one solution for blister machines with plate sealing or rotary sealing, to be switched simply via software control. The feeder system is a self-contained unit that communicates with the blister machine only via signals.
The Sypro® Dual 200 feeder system can hold feeder cassettes for draw offs up to 500mm. The unit is run by electricity and all motions are servo- controlled. This allows for very fine adjustments of the stopper pins to allow for different product shapes. All motions are controlled using servo motors, therefore no risk of air contamination.
All settings and adjustments are managed via the touch screen control panel. The design is very user friendly and product settings can be saved / recalled as recipes, thus reducing changeover times.
- The feeder is exclusively driven electrically and does not use pneumatics. Thus, no external air in the environment of openproducts.
- GMP fair design.
- Visualization is FDA CFR Part 11 compliant.
- Networking capability.
- Remote Access capability.
- All axes with absolute position detection.
- Multilingual operation, languages switchable.
- Detailed error description with possible root cause analysis to assist in the elimination of any errors.
- An unlimited number of format recipes can be stored.
- Product recipes can be exported and imported.
- Creation of PDF-files to output product recipes and audit trail information.
- All axes and functions can be changed during operation.
- Four user levels with different permission settings for as many users as desired
- Login via username and password with auto-logoff possibility.
- If there is no enable signal on the blister machine, it is possible to use the feeder's own shift register.
Intermittent blister machines (plate sealing):
- Sweep movement of the X-Y axis after or during the placement of the products in the blister pocket. The sweep movement can be
- adjusted in length and angle.
- Web shrinking compensation optionally available.
- It is selectively possible to fill the products during each sealing cycle or to fill a double cycle every second sealir ig cycle. The maximum numbers of cycles of the feeder are 60 feeding cycles, thus up to 120 sealing cycles per minute.
Continuous motion blister machines (rotary sealing):
- 100% synchronization with the web-speed. The speed of the web can be varied between 0-20m / min. during operation.
- Pocket edge-triggering or blister machine signal-triggering optionally configurable.
- The length of the feeding cycle can be adjusted independently of the deep drawing cycle to the required feeding rate.
