Model Tomcat 1210 -Bottle-Filling Machine

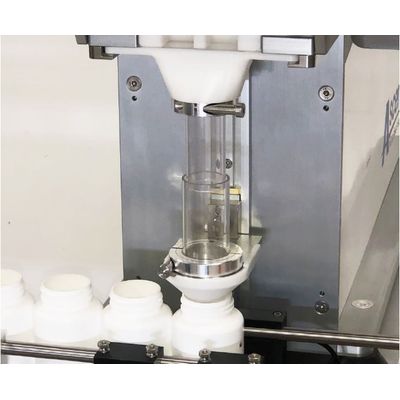

Ascend Packaging Systems’s Tomcat 1210 is a fully automatic bottle filling machine specifically designed for counting and filling bottles with tablets, capsules, and softgels. The Tomcat 1210 has been manufactured with the best capabilities of the Tomcat 1200, making it accurate and efficient. The Tomcat 1210 bottle filling machine is available with various conveyor options that move correctly filled bottles off the line and place empty bottles under the filling station, counting and filling the next bottle quickly. This machine is also equipped with a rejection sensor that detects faults during bottle filling. If there’s a filling error, the bottle is rejected from the line to ensure the finished product is filled with an accurate count of quality tablets, capsules, or softgels. This versatile automatic bottle filling machine can also count translucent softgels and dusty tablets efficiently.
- Quick setup, easy adjustment
- Improves bottle-filling accuracy
- Reduces operator fatigue and mistakes
- Equipped with highly accurate counting technology
- Counts tablets, capsules, and translucent softgels
- Detects partial tablets and “twins,” then rejects the bottle to prevent product loss
- Equipped with closed loop controls on feeding system for easy setup
- Designed with preset parameters to ensure speedy changeovers
- 316L stainless steel feed trays
- Large capacity stainless steel hopper for efficiency
- Adjustable lower manifold to accommodate different bottle heights
- Quick-change bottle nozzle
- User-friendly touchscreen controls
- Compact cylinders to provide positive bottle control
- Bottle backup sensor pauses machine if downstream process is halted
- Reject sensor verifies the rejected bottle before continuing the filling process
- No calibration required
- Simple and fast disassembly and cleaning
- Smooth feeding
- Various conveyor options available
Maximum Tablet Dimension
1” x 1” opening for counting, but product dependent
Minimum Tablet Dimension
0.125” required for reliable product detection
Countable Products
Capsules, Tablets, and Softgels
Counting Technology
Optical Array
Computer Technology
Custom high-speed embedded hardware. No PC required. No viruses. No Windows. No IT department required.
Screen
5” Capacitive Touch
Filler Machine Dimensions
30”H X 35”L X 14”W
(57.15cm X 35.56cm X 35.56cm)
Weight
150 lbs (68 kg)
Power
120V, 60Hz
