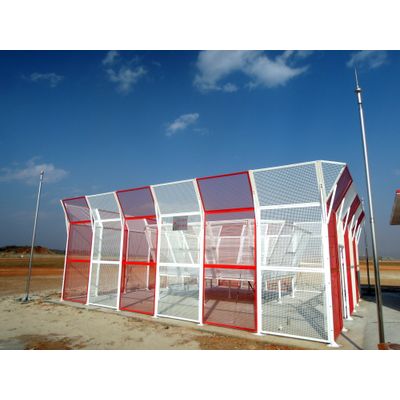

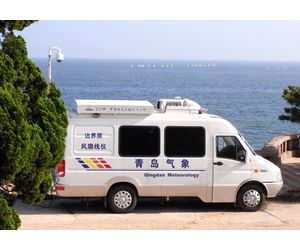

Newsky - Model CFL-03 -boundary layer wind profiler radar

SHARE
CFL-03 boundary layer wind profile radar is a high-performance remote sensing detection device for clear-air atmosphere, capable of continuously providing real-time vertical distributions of meteorological elements such as atmospheric horizontal wind field, vertical airflow, atmospheric virtual temperature, and the atmospheric refractive index structure constant (Cn²) from the ground to the upper atmosphere.
Most popular related searches
wind profiling radar
wind profiling
radar wind profiling
human machine interface
automatic monitoring
remote sensing
remote sensing device
automatic monitoring system
atmospheric temperature

Operating frequency: 1270MHz～1295MHz、1300MHz～1375MHz，operating at fixed frequencies within the range

Detecting range: 100m~3-5km

Wind direction: 0～360°

Height resolution: 50m/100m

Time resolution: ≤6min

Antenna size: 2.4m X 2.4m

Wind speed accuracy:  ≤1m/s

Wind direction accuracy: ≤10°

Detection height of virtual temperature:  150m~1km


•  Employs phased array antenna technology, offering high temporal resolution；
•  Utilizes all-solid-state transmitter technology, ensuring high reliability；
•  Incorporates digital intermediate frequency receiver technology, providing high detection sensitivity；
•  Adopts comprehensive automatic monitoring and calibration technology, featuring a high degree of automation and the capability for unattended operation；
•  Uses data processing algorithms tailored to the characteristics of weather targets, ensuring reliable detection data quality and an excellent human-machine interface.
